PPTC141 Series

Catalog

CONN HDR 14POS 0.1 TIN PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Termination	Material Flammability Rating	Connector Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Type	Number of Positions Loaded	Mounting Type	Insulation Height	Insulation Height	Insulation Color	Fastening Type	Number of Positions	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]

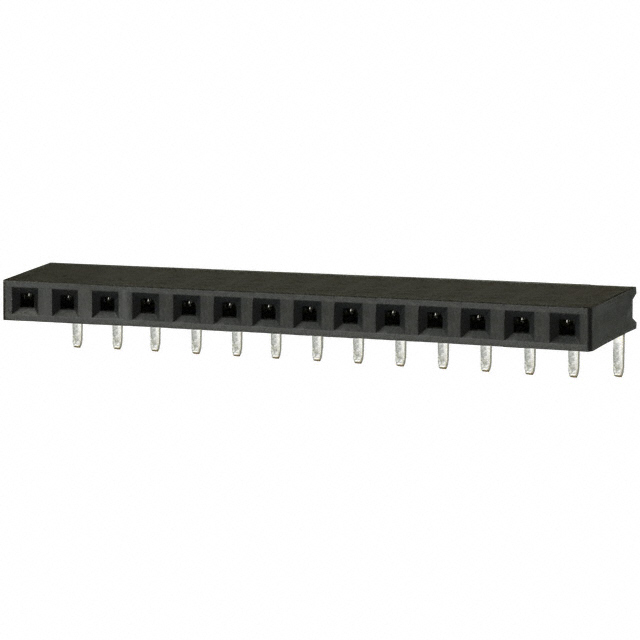

Sullins Connector Solutions PPTC141LGBN-RC	Phosphor Bronze	Square	Polyester	Solder	UL94 V-0	Header	Tin	0.124 in	3.15 mm	Female Socket	All	Right Angle Through Hole	0.1 in	2.54 mm	Black	Push-Pull	14	1	-40 C	105 ░C	0.1 "	2.54 mm	3 A	250 V
Sullins Connector Solutions PPTC141KFXC	Phosphor Bronze	Square	Polyester	Solder	UL94 V-0	Header Top or Bottom Entry	Tin			Female Socket	All	Surface Mount	0.28 in	7.1 mm	Black	Push-Pull	14	1	-40 C	105 ░C	0.1 "	2.54 mm	3 A	250 V

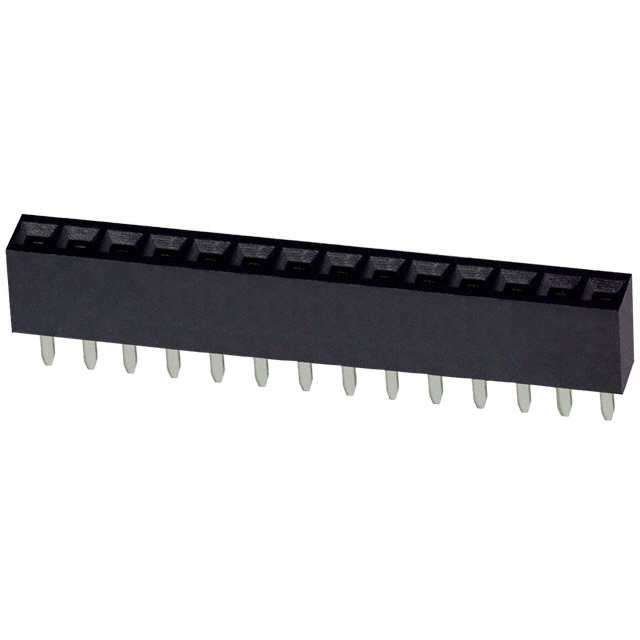

Sullins Connector Solutions PPTC141LFBN	Phosphor Bronze	Square	Polyester	Solder	UL94 V-0	Header	Tin			Female Socket	All	Through Hole	0.335 "	8.51 mm	Black	Push-Pull	14	1	-40 C	105 ░C	0.1 "	2.54 mm	3 A	250 V	0.126 "	3.2 mm
Sullins Connector Solutions PPTC141LFBN-RC	Phosphor Bronze	Square	Polyester	Solder	UL94 V-0	Header	Tin			Female Socket	All	Through Hole	0.335 "	8.51 mm	Black	Push-Pull	14	1	-40 C	105 ░C	0.1 "	2.54 mm	3 A	250 V	0.126 "	3.2 mm
