726-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K

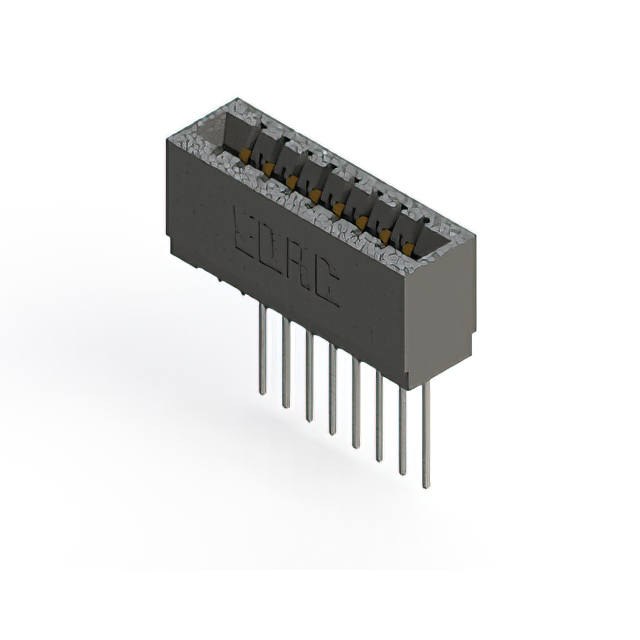

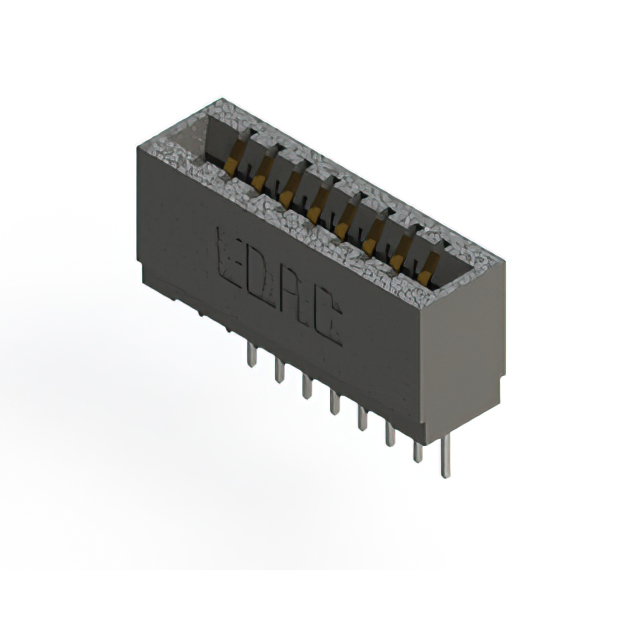

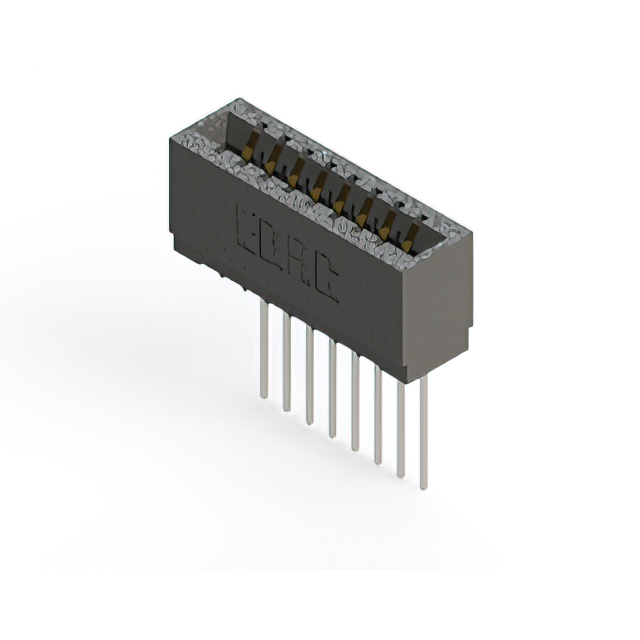

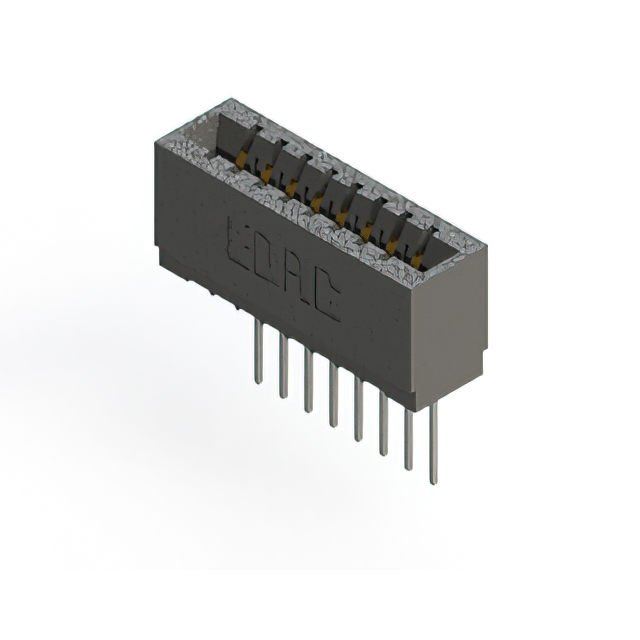

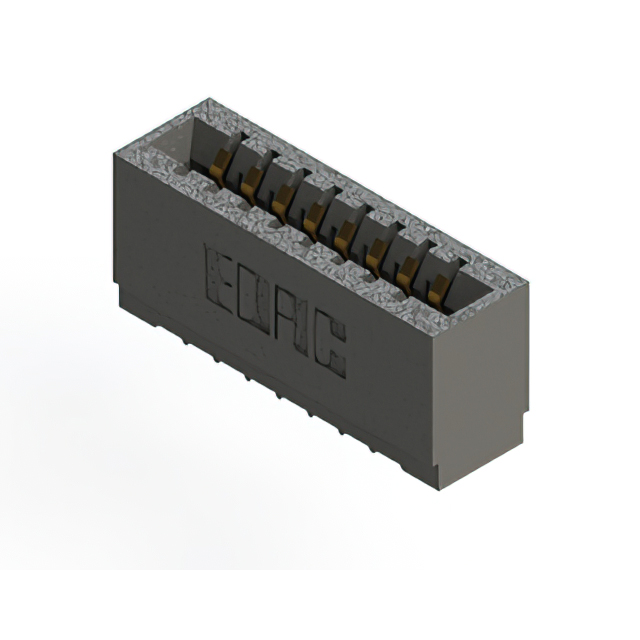

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, 0.125 INCH PITCH, WIRE WRAP TERMINAL, LOCKING, BLACK INSULATOR,
| Part | Number of Positions | Mounting Type | Read Out | Contact Material | Color | Card Type | Contact Type | Pitch [x] | Pitch [x] | Number of Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 8 | Through Hole | Single | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | 0.125 in | 3.18 mm | 1 | Polyester Thermoplastic | 0.76 Ám | 30 Áin | 1 | Gold | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Press-Fit Wire Wrap | Female |
 EDAC Inc. | 8 | Through Hole | Single | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | 0.125 in | 3.18 mm | 1 | Polyester Thermoplastic | 0.76 Ám | 30 Áin | 1 | Gold | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Press-Fit Wire Wrap | Female |
 EDAC Inc. | 8 | Through Hole | Single | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | 0.125 in | 3.18 mm | 1 | Polyester Thermoplastic | 0.76 Ám | 30 Áin | 1 | Gold | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Press-Fit | Female |
 EDAC Inc. | 8 | Through Hole | Single | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | 0.125 in | 3.18 mm | 1 | Polyester Thermoplastic | 0.76 Ám | 30 Áin | 1 | Gold | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Press-Fit Wire Wrap | Female |
 EDAC Inc. | 8 | Through Hole | Single | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | 0.125 in | 3.18 mm | 1 | Polyester Thermoplastic | 0.76 Ám | 30 Áin | 1 | Gold | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Press-Fit | Female |
 EDAC Inc. | 8 | Through Hole | Single | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | 0.125 in | 3.18 mm | 1 | Polyester Thermoplastic | 0.76 Ám | 30 Áin | 1 | Gold | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Press-Fit Wire Wrap | Female |
