LM96163 Series

1 remote and local temp sensor with beta compensation and fan control

Catalog

1 remote and local temp sensor with beta compensation and fan control

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Function	Output Alarm	Output Fan	Package / Case	Output Type	Sensor Type	Topology	Sensing Temperature	Sensing Temperature [Min]	Sensing Temperature [Max]	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Contents	Utilized IC / Part	Sensitivity	Sensing Range [Min]	Sensing Range [Max]	Interface	Embedded	Supplied Contents
Texas Instruments LM96163CISD/NOPB	10-WSON (3x3)	85 °C	-40 °C	Surface Mount	Fan Control Temp Monitor			10-WFDFN Exposed Pad	SMBus	Internal and External	ADC (Sigma Delta) Comparator Register Bank Tach	External Sensor	-40 °C	85 °C	3 °C	3.6 V	3 V

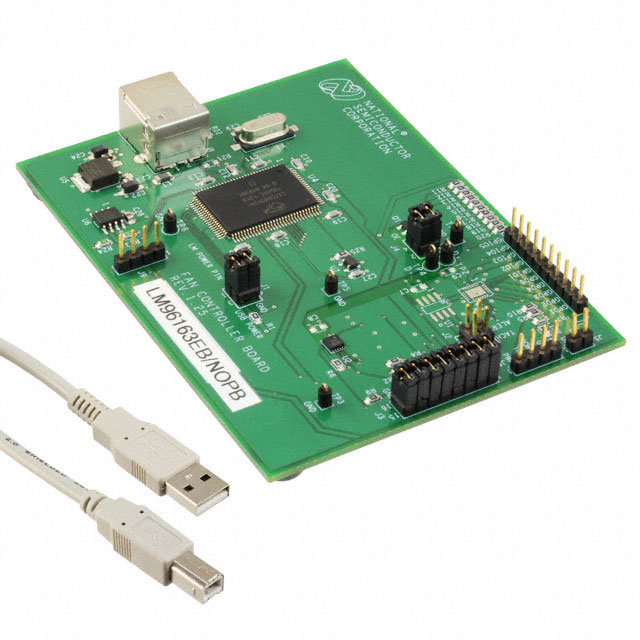

Texas Instruments LM96163EB/NOPB										Fan Controller Temperature						3.6 V	3 V	Board(s)	LM96163	1 °C	25 °C	125 °C	SMBus		Board(s)

Catalog

1 remote and local temp sensor with beta compensation and fan control

Key Features

• TruTherm BJT Beta Compensation Technology Supports 45nm, 65nm and 90nm Processor Remote DiodesFactory Trimmed for Intel® 45 nm Processor Thermal DiodesAccurately Senses Diode-Connected 2N3904 Transistors or Thermal Diodes On-board Large Processors or ASIC'sAccurately Senses its Own TemperatureIntegrated PWM Fan Speed Control Output Supports High Resolution at 22.5kHz Frequency for 4-pin FansAcoustic Fan Noise Reduction with User-Programmable 12-Step Lookup TableLUT Transition Fine Resolution Smoothing FunctionTachometer Input for Measuring Fan RPMSmart-Tach Modes for Measuring RPM of Fans with Pulse-Width-Modulated Power as Shown in Typical ApplicationALERTOutput for Processor Event NotificationTCRITOutput for Critical Temperature System ShutdownOffset Register Can Adjust for a Variety of Thermal Diodes10-Bit Plus Sign and 11-Bit Unsigned Formats, with 1/8°C ResolutionExtended Resolution to 1/32°C when Digital Filter EnabledResolves Remote Diode Temperatures up to 255.875°CSMBus 2.0 Compatible Interface, with TIMEOUT and ARA10-Pin SON PackageAll trademarks are the property of their respective owners.TruTherm BJT Beta Compensation Technology Supports 45nm, 65nm and 90nm Processor Remote DiodesFactory Trimmed for Intel® 45 nm Processor Thermal DiodesAccurately Senses Diode-Connected 2N3904 Transistors or Thermal Diodes On-board Large Processors or ASIC'sAccurately Senses its Own TemperatureIntegrated PWM Fan Speed Control Output Supports High Resolution at 22.5kHz Frequency for 4-pin FansAcoustic Fan Noise Reduction with User-Programmable 12-Step Lookup TableLUT Transition Fine Resolution Smoothing FunctionTachometer Input for Measuring Fan RPMSmart-Tach Modes for Measuring RPM of Fans with Pulse-Width-Modulated Power as Shown in Typical ApplicationALERTOutput for Processor Event NotificationTCRITOutput for Critical Temperature System ShutdownOffset Register Can Adjust for a Variety of Thermal Diodes10-Bit Plus Sign and 11-Bit Unsigned Formats, with 1/8°C ResolutionExtended Resolution to 1/32°C when Digital Filter EnabledResolves Remote Diode Temperatures up to 255.875°CSMBus 2.0 Compatible Interface, with TIMEOUT and ARA10-Pin SON PackageAll trademarks are the property of their respective owners.

Description

The LM96163 has remote and local temperature sensors with integrated fan control that includes TruTherm BJT transistor beta compensation technology for remote diode sensing. The LM96163 accurately measures: (1) its own temperature and (2) the temperature of a diode-connected transistor, such as a 2N3904, or a thermal diode commonly found on Computer Processors, Graphics Processor Units (GPU) and other ASIC's. The LM96163 has an offset register to correct for errors caused by different non-ideality factors of other thermal diodes. The LM96163 also features an integrated, pulse-width-modulated (PWM), open-drain fan control output. Fan speed depends on a combination of the remote temperature reading, the lookup table and register settings. The 12-step Lookup Table (LUT) enables the user to program a non-linear fan speed vs. temperature transfer function often used to quiet acoustic fan noise. In addition a fully programmable ramping function has been added to allow smooth transitions between LUT setpoints. The LM96163 has remote and local temperature sensors with integrated fan control that includes TruTherm BJT transistor beta compensation technology for remote diode sensing. The LM96163 accurately measures: (1) its own temperature and (2) the temperature of a diode-connected transistor, such as a 2N3904, or a thermal diode commonly found on Computer Processors, Graphics Processor Units (GPU) and other ASIC's. The LM96163 has an offset register to correct for errors caused by different non-ideality factors of other thermal diodes. The LM96163 also features an integrated, pulse-width-modulated (PWM), open-drain fan control output. Fan speed depends on a combination of the remote temperature reading, the lookup table and register settings. The 12-step Lookup Table (LUT) enables the user to program a non-linear fan speed vs. temperature transfer function often used to quiet acoustic fan noise. In addition a fully programmable ramping function has been added to allow smooth transitions between LUT setpoints.
