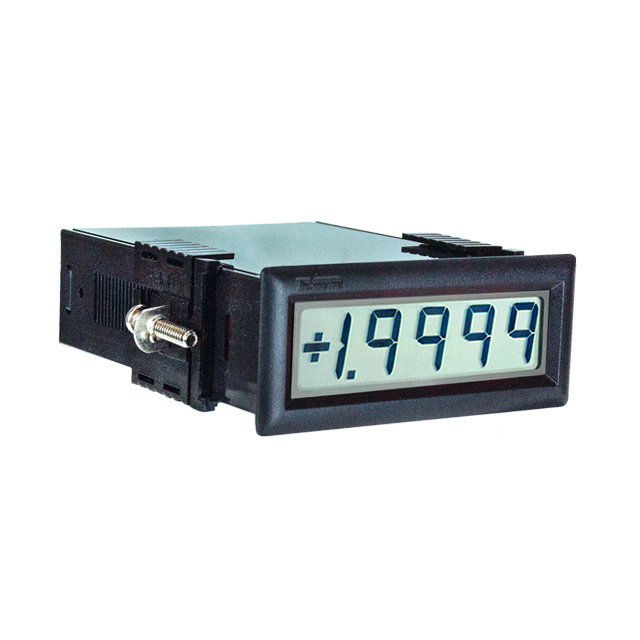

PM-45X Series
Manufacturer: Texmate
Beta
⌘K
2V DIFFERENTIAL 0.01% DCV METER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Measuring Range [Max] | Measuring Range [Min] | Mounting Type | Number of Characters Per Row | Display Characters - Height [z] | Display Characters - Height [z] | Voltage - Supply [Max] | Voltage - Supply [Min] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Display Type | Measuring Type | Termination Style | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texmate | 0 °C | 60 °C | 2 V | 0 VDC | Panel Mount | 4.5 | 0.48 in | 12.2 mm | 5.5 V | 4.5 V | 24.64 mm | 64.77 mm | LED | Voltage | Card Edge | Voltmeter |
Texmate | 0 °C | 60 °C | 200 mVDC | 0 VDC | Panel Mount | 4.5 | 0.48 in | 12.2 mm | 5.5 V | 4.5 V | 24.64 mm | 64.77 mm | LED | Voltage | Card Edge | Voltmeter |
