LB15WKW Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Mechanical Life	Electrical Life	Actuator Type	Illumination Type, Color	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Mounting Type	Actuator Marking	Termination Style	Type	Ingress Protection	Voltage Rating - AC	Circuit	Current Rating (Amps)	Illumination Voltage (Nominal)	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]
NKK Switches LB15WKW01-01-CJ	1000000 Cycles	100000 Cycles	Button Round	Neon Red	On-Mom	50 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A	110 VAC	Red	22 mm
NKK Switches LB15WKW01/CUL-6G-JB	1000000 Cycles	100000 Cycles	Button Round	Blue LED	On-Mom	50 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A	3.6 VDC	Clear	22 mm

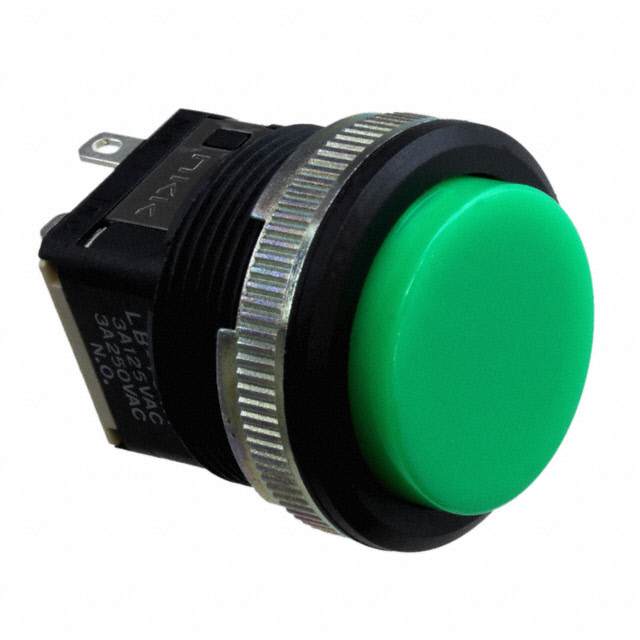

NKK Switches LB15WKW01-FJ	1000000 Cycles	100000 Cycles	Button Round		On-Mom	70 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A		Green	22 mm

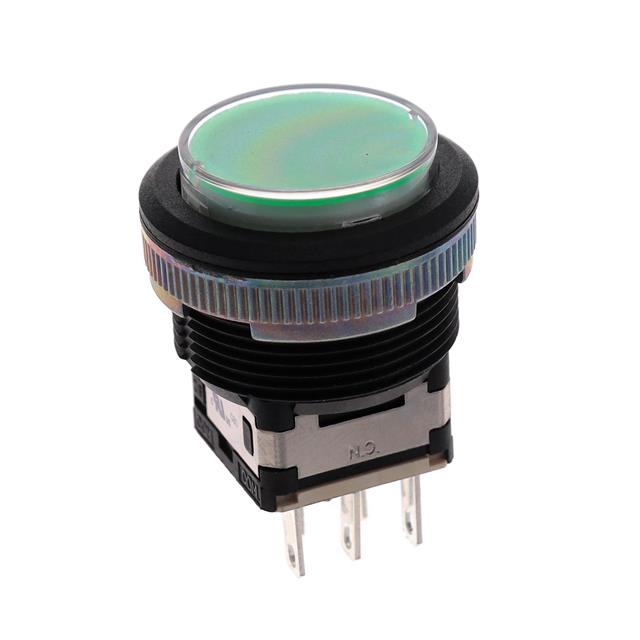

NKK Switches LB15WKW01-JF	1000000 Cycles	100000 Cycles	Button Round		On-Mom	70 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A		Clear	22 mm
NKK Switches LB15WKW01-5F05-JB	1000000 Cycles	100000 Cycles	Button Round	Green LED	On-Mom	50 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A	5 VDC	Clear	22 mm

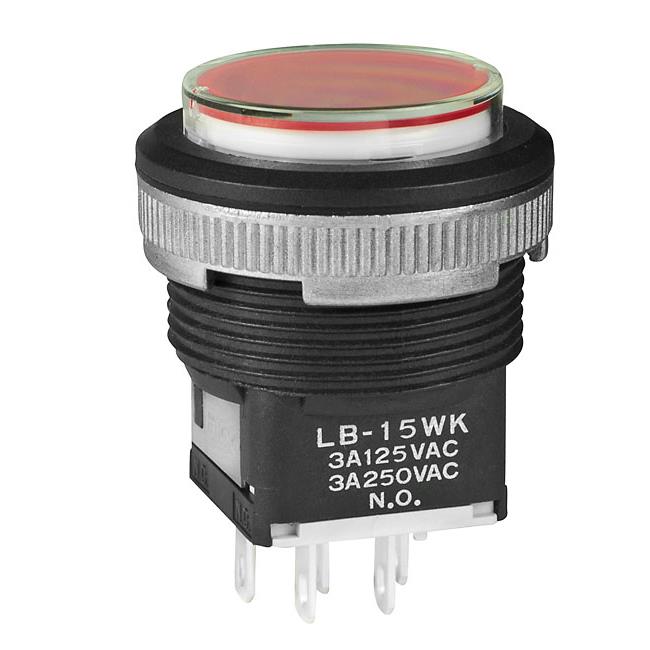

NKK Switches LB15WKW01-5C24-JC	1000000 Cycles	100000 Cycles	Button Round	LED Red	On-Mom	50 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A	24 V	Clear	22 mm

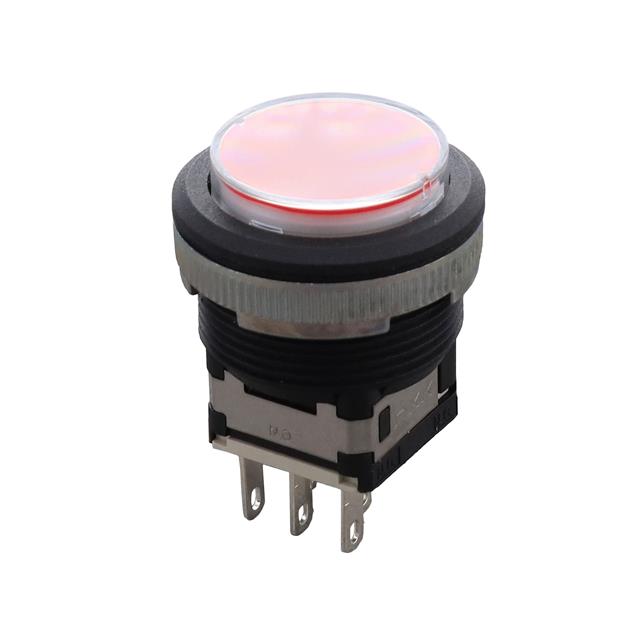

NKK Switches LB15WKW01-5C12-JC	1000000 Cycles	100000 Cycles	Button Round	LED Red	On-Mom	50 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A	12 VDC	Clear	22 mm

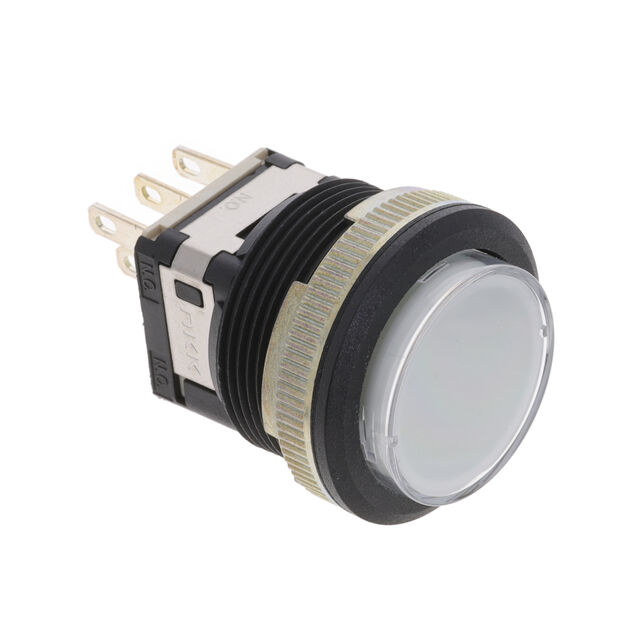

NKK Switches LB15WKW01-5F12-JB	1000000 Cycles	100000 Cycles	Button Round	Green LED	On-Mom	50 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A	12 VDC	Clear	22 mm
NKK Switches LB15WKW01/UC-5F-JB	1000000 Cycles	100000 Cycles	Button Round	Green LED	On-Mom	50 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A	2.1 VDC	Clear	22 mm

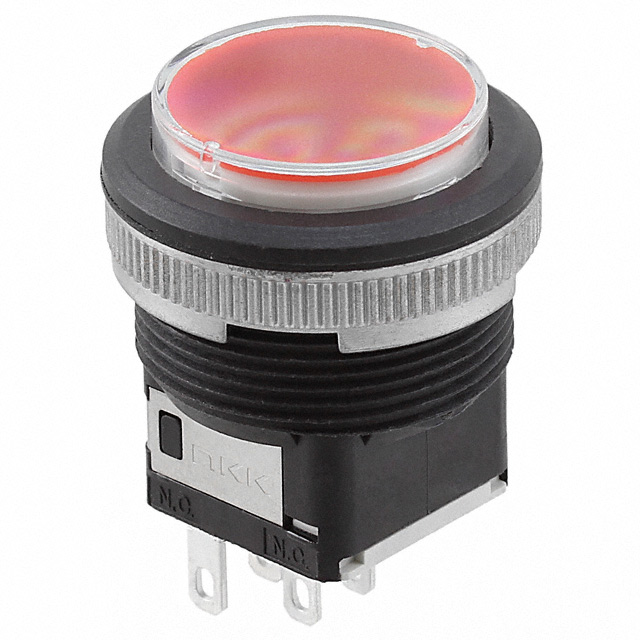

NKK Switches LB15WKW01-01-JC	1000000 Cycles	100000 Cycles	Button Round	Neon Red	On-Mom	50 °C	-25 °C	30 V	Panel Mount Front	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	SPDT	3 A	110 VAC	Clear	22 mm
