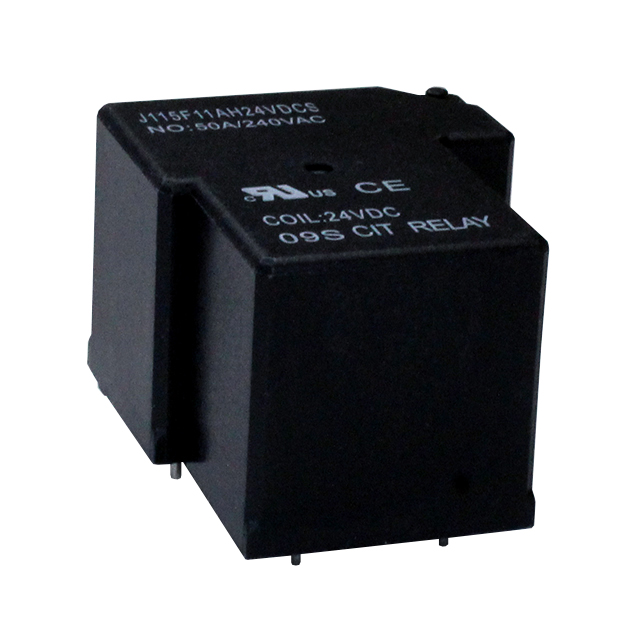

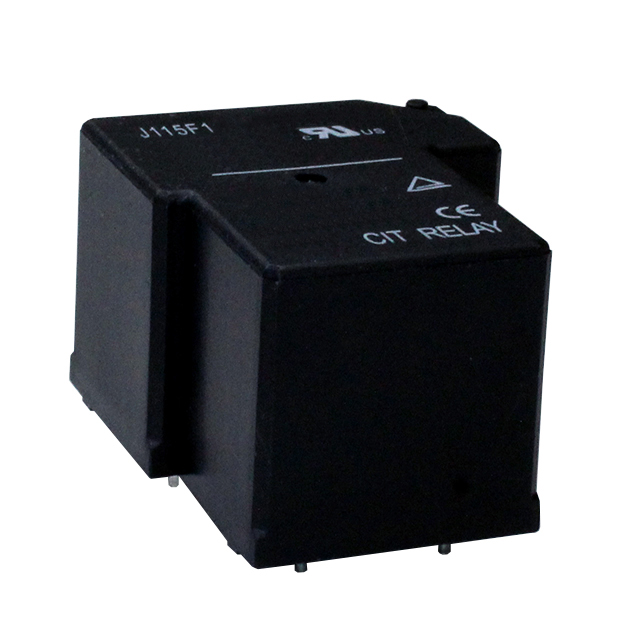

J115F11 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPDT 40A 220V
| Part | Contact Rating (Current) | Must Operate Voltage | Termination Style | Contact Form | Release Time | Contact Material | Relay Type | Coil Current | Coil Type | Must Release Voltage | Seal Rating | Coil Voltage | Approval Agency | Coil Insulation | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Load - Max Switching (Real Power) | Load - Max Switching (Apparent Power) | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Operate Time | Coil Resistance | Form A Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 40 A | 165 VAC | PC Pin | 1 C Form SPDT | 10 ms | Silver Tin Oxide (AgSnO) | General Purpose | 16.3 mA | Non Latching | 66 VAC | Fully Sealed | 220 V | cURus TUV | Class F | 277 VAC | 110 VDC | 1120 W | 9600 VA | Through Hole | 125 °C | -55 °C | 15 ms | 13.49 kOhms | |
CIT Relay and Switch | 40 A | 207 VAC | PC Pin | 1 C Form SPDT | 10 ms | Silver Tin Oxide (AgSnO) | General Purpose | 13.7 mA | Non Latching | 83.1 VAC | Fully Sealed | 277 V | cURus TUV | Class F | 277 VAC | 110 VDC | 1120 W | 9600 VA | Through Hole | 125 °C | -55 °C | 15 ms | 20.21 kOhms | |
 CIT Relay and Switch | 50 A | 9 VDC | PC Pin | SPST-NO | 10 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | 125 mA | Non Latching | 1.2 V | Fully Sealed | 12 VAC | cURus | Class F | 277 VAC | 110 VDC | 5500 W | 13850 VA | Through Hole | 125 °C | -55 °C | 15 ms | 96 Ohms | 1 |
CIT Relay and Switch | 50 A | 36 VDC | PC Pin | SPST-NO | 10 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | 31.3 mA | Non Latching | 4.8 VAC | Fully Sealed | 48 V | cURus | Class F | 277 VAC | 110 VDC | 5500 W | 13850 VA | Through Hole | 125 °C | -55 °C | 15 ms | 1.536 kOhms | 1 |
CIT Relay and Switch | 40 A | 9 VDC | PC Pin | 1 C Form SPDT | 10 ms | Silver Tin Oxide (AgSnO) | General Purpose | 0.075 A | Non Latching | 1.2 V | Fully Sealed | 12 VAC | cURus TUV | Class F | 277 VAC | 110 VDC | 1120 W | 9600 VA | Through Hole | 125 °C | -55 °C | 15 ms | 160 Ohms | |
CIT Relay and Switch | 40 A | 36 VDC | PC Pin | 1 C Form SPDT | 10 ms | Silver Tin Oxide (AgSnO) | General Purpose | 18.8 mA | Non Latching | 4.8 VAC | Fully Sealed | 48 V | cURus TUV | Class F | 277 VAC | 110 VDC | 1120 W | 9600 VA | Through Hole | 125 °C | -55 °C | 15 ms | 2560 Ohms | |
CIT Relay and Switch | 40 A | 9 VDC | PC Pin | 1 C Form SPDT | 10 ms | Silver Tin Oxide (AgSnO) | General Purpose | 50 mA | Non Latching | 1.2 V | Fully Sealed | 12 VAC | cURus TUV | Class F | 277 VAC | 110 VDC | 1120 W | 9600 VA | Through Hole | 125 °C | -55 °C | 15 ms | 240 Ohms | |
 CIT Relay and Switch | 50 A | 18 VDC | PC Pin | SPST-NO | 10 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | 62.5 mA | Non Latching | 2.4 V | Fully Sealed | 24 VDC | cURus | Class F | 277 VAC | 110 VDC | 5500 W | 13850 VA | Through Hole | 125 °C | -55 °C | 15 ms | 384 Ohms | 1 |
CIT Relay and Switch | 40 A | 36 VDC | PC Pin | 1 C Form SPDT | 10 ms | Silver Tin Oxide (AgSnO) | General Purpose | 12.5 mA | Non Latching | 4.8 VAC | Fully Sealed | 48 V | cURus TUV | Class F | 277 VAC | 110 VDC | 1120 W | 9600 VA | Through Hole | 125 °C | -55 °C | 15 ms | 3.84 kOhms | |
CIT Relay and Switch | 40 A | 18 VDC | PC Pin | 1 C Form SPDT | 10 ms | Silver Tin Oxide (AgSnO) | General Purpose | 0.0375 A | Non Latching | 2.4 V | Fully Sealed | 24 VDC | cURus TUV | Class F | 277 VAC | 110 VDC | 1120 W | 9600 VA | Through Hole | 125 °C | -55 °C | 15 ms | 640 Ohms |
