FDSD012 Series
Manufacturer: Belden Inc.
Beta
⌘K

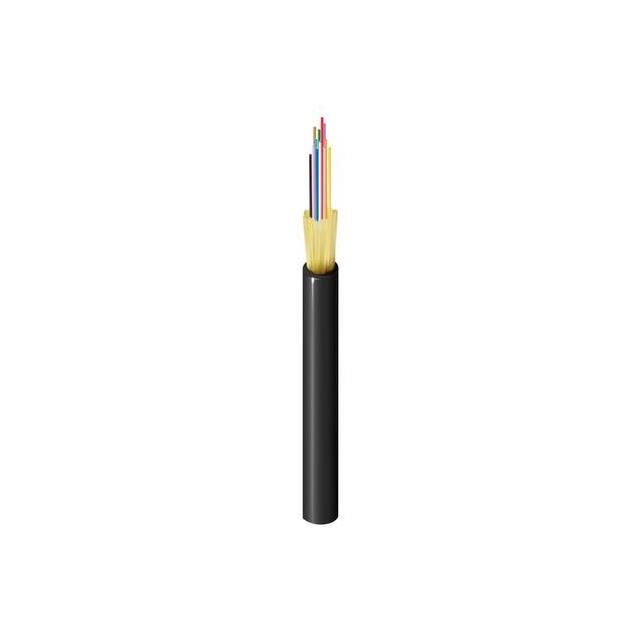

CBL FIBER OPTIC 125UM SINGLEMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Style | Jacket Color | Ratings | Cladding Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Tensile Strength | Features | Core Diameter [diameter] | Bend Radius [radius] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | -40 C | Singlemode | Multiple Fibers | Black | OFNR | 125 µm | 6.6 mm | 0.26 in | Poly-Vinyl Chloride (PVC) | 20.4 kg | 12 Fibers Rip Cord | 9 µm | |
 Belden Inc. | ||||||||||||||
Belden Inc. | ||||||||||||||

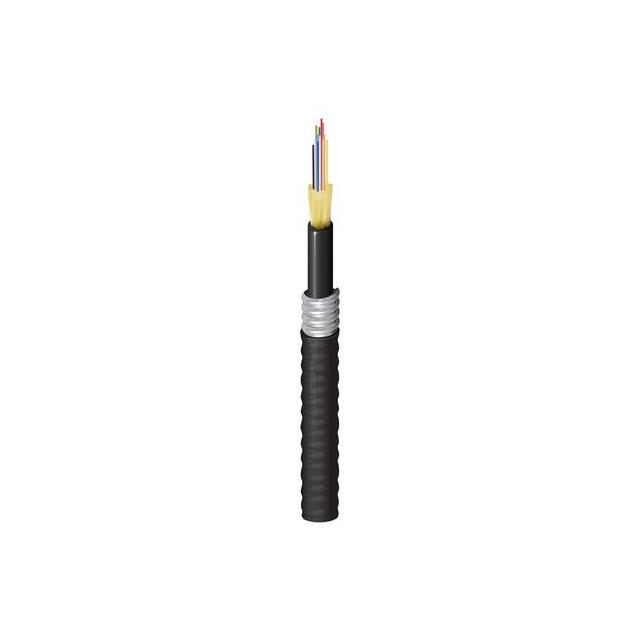

 Belden Inc. | 70 °C | -40 C | Singlemode | Multiple Fibers | Black | OFCP | 125 µm | 12.19 mm | 0.48 in | Poly-Vinyl Chloride (PVC) | 20.4 kg | 12 Fibers Armored | 9 µm | |
Belden Inc. | 70 °C | -40 C | Singlemode | Multiple Fibers | Black | OFNR | 125 µm | Low Smoke Zero Halogen (LSZH) | 20.4 kg | 12 Fibers Rip Cord | 9 µm | |||
 Belden Inc. | 70 °C | -40 C | Singlemode | Standard | Black | 125 µm | 5.84 mm | 0.23 in | Poly-Vinyl Chloride (PVC) | 20.4 kg | 8.2 µm | 58.42 mm |
