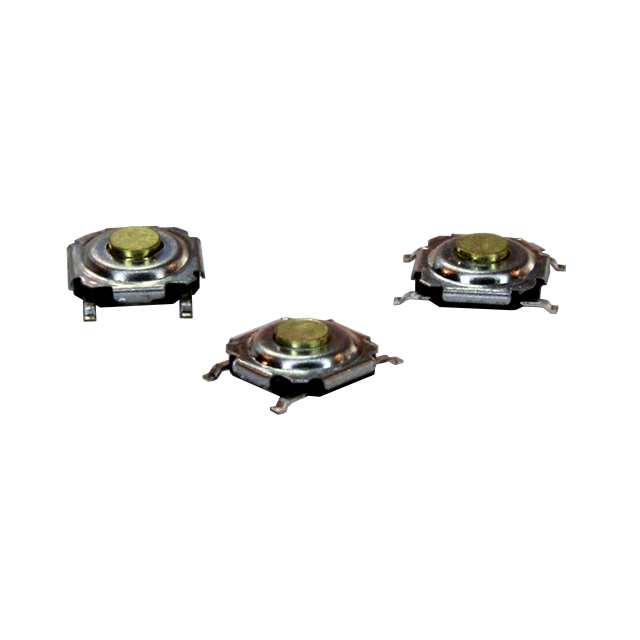

CS1204A Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Termination Style | Mounting Type | Actuator Type | Actuator Height off PCB, Vertical [z] | Operating Force | Switch Function | Circuit | Actuator Orientation | Outline [x] | Outline [y] | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Brass | Gull Wing | Surface Mount | Standard | 1.5 mm | 160 gf | Off-Mom | SPST-NO | Top Actuated | 5.2 mm | 5.2 mm | 85 °C | -40 C | Non-Illuminated | 0.05 A 50 VDC |
