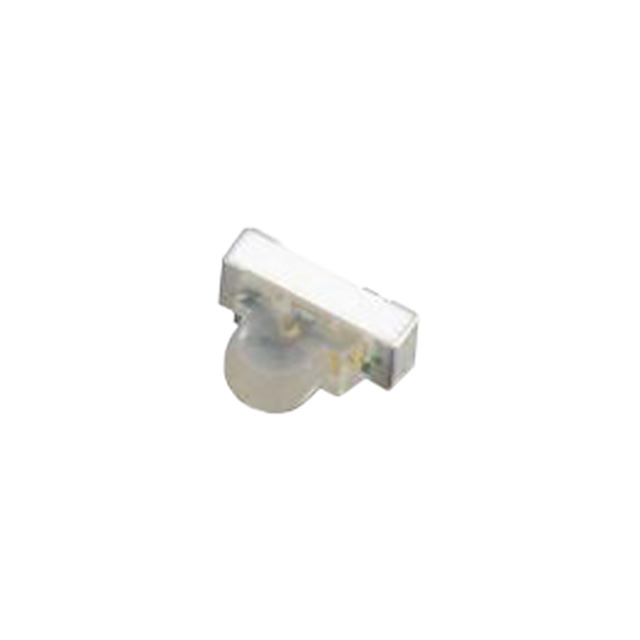

APDA1806 Series

Catalog

LED BLUE CLEAR SMD R/A

Part	Wavelength - Dominant	Lens Style	Mounting Type	Height (Max) [z]	Lens Color	Viewing Angle	Lens Size [diameter]	Supplier Device Package	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Lens Transparency	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Current - Test	Configuration	Color	Lens Size [x]	Lens Size [y]
Kingbright APDA1806VBC/D	470 nm	Round with Domed Top	Right Angle Surface Mount	0.7 mm	Colorless	25 °	0.94 mm	SMD	2-SMD No Lead	1.5 mm	1.8 mm	800 mcd	Clear	3.3 V	465 nm	20 mA	Standard	Blue
Kingbright APDA1806SECK/J3-PRV	625 nm	Round with Domed Top	Right Angle Surface Mount	0.7 mm	Colorless	25 °	0.94 mm	SMD	2-SMD No Lead	1.5 mm	1.8 mm	2600 mcd	Clear	2.2 V	640 nm	20 mA	Standard	Red
Kingbright APDA1806SYCK	590 nm	Round with Domed Top	Right Angle Surface Mount	0.7 mm	Colorless	25 °	0.94 mm	SMD	2-SMD No Lead	1.5 mm	1.8 mm	1100 mcd	Clear	2 V	590 nm	20 mA	Standard	Yellow
Kingbright APDA1806ZGCK	525 nm	Round with Domed Top	Right Angle Surface Mount	0.7 mm	Colorless	25 °	0.94 mm	SMD	2-SMD No Lead	1.5 mm	1.8 mm	3200 mcd	Clear	3.3 V	515 nm	20 mA	Standard	Green
Kingbright APDA1806SECK	605 nm	Round with Domed Top	Right Angle Surface Mount	0.7 mm	Colorless	25 °	0.95 mm	SMD	2-SMD No Lead	1.5 mm	1.8 mm	3300 mcd	Clear	2.1 V	610 nm	20 mA	Standard
Kingbright APDA1806SURCK	630 nm	Round with Domed Top	Right Angle Surface Mount	0.7 mm	Colorless	25 °	0.94 mm	SMD	2-SMD No Lead	1.5 mm	1.8 mm	1200 mcd	Clear	1.95 V	645 nm	20 mA	Standard	Red
Kingbright APDA1806SYCK/J3-PRV	590 nm	Round with Domed Top	Right Angle Surface Mount	0.7 mm	Colorless	25 °	0.94 mm	SMD	2-SMD No Lead	1.5 mm	1.8 mm	1800 mcd	Clear	2 V	590 nm	20 mA	Standard	Yellow

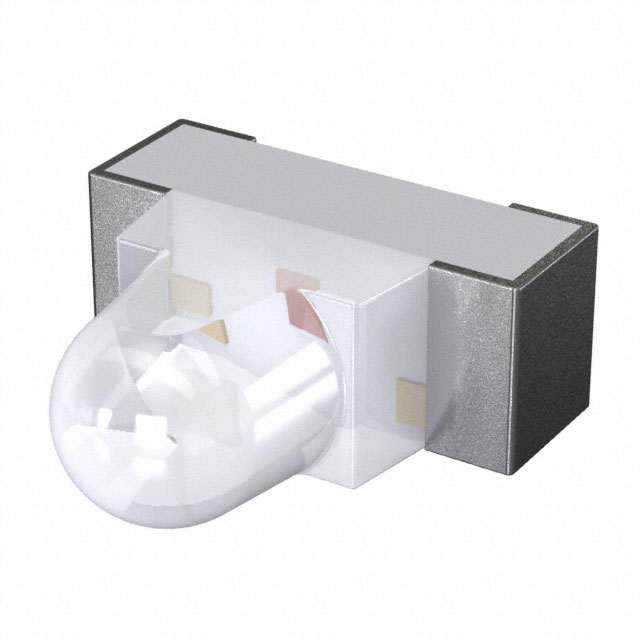

Kingbright APDA1806CGCK	570 nm	Rectangle with Domed Top	Right Angle Surface Mount	0.7 mm	Colorless	25 °		SMD	2-SMD No Lead	1.5 mm	1.8 mm	400 mcd	Clear	2.1 V		20 mA	Standard	Green	0.95 mm	0.6 mm
