PPTC032 Series

Catalog

CONN HDR 6POS 0.1 TIN PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Material Flammability Rating	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Type	Current Rating (Amps)	Insulation Color	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Termination	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height
Sullins Connector Solutions PPTC032LJBN	Phosphor Bronze	Square	Polyester	UL94 V-0	2	0.124 in	3.15 mm	All	0.1 in	2.54 mm	Right Angle Through Hole	Female Socket	3 A	Black	0.2 in	5.08 mm	250 V	Solder	6	Header	-40 C	105 ░C	Tin	Push-Pull	0.1 "	2.54 mm

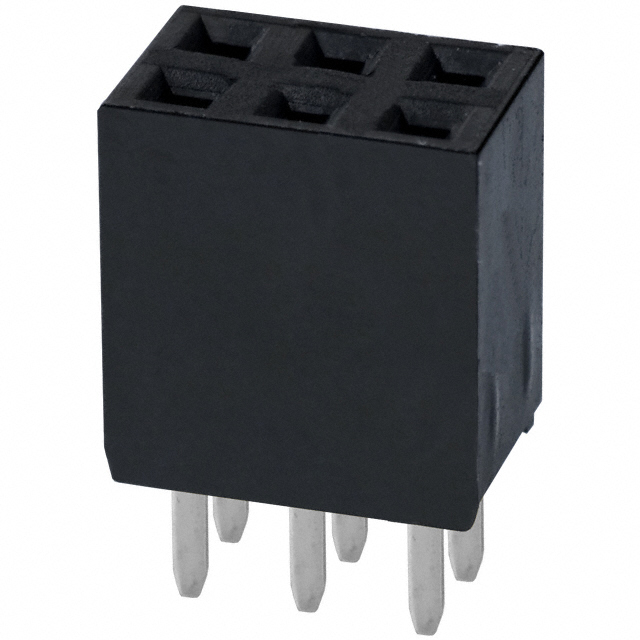

Sullins Connector Solutions PPTC032LFBN	Phosphor Bronze	Square	Polyester	UL94 V-0	2			All	0.1 in	2.54 mm	Through Hole	Female Socket	3 A	Black			250 V	Solder	6	Header	-40 C	105 ░C	Tin	Push-Pull	0.1 "	2.54 mm	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPTC032LFBN-RC	Phosphor Bronze	Square	Polyester	UL94 V-0	2			All	0.1 in	2.54 mm	Through Hole	Female Socket	3 A	Black			250 V	Solder	6	Header	-40 C	105 ░C	Tin	Push-Pull	0.1 "	2.54 mm	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPTC032LJBN-RC	Phosphor Bronze	Square	Polyester	UL94 V-0	2	0.124 in	3.15 mm	All	0.1 in	2.54 mm	Right Angle Through Hole	Female Socket	3 A	Black	0.2 in	5.08 mm	250 V	Solder	6	Header	-40 C	105 ░C	Tin	Push-Pull	0.1 "	2.54 mm
