510CBB Series

Catalog

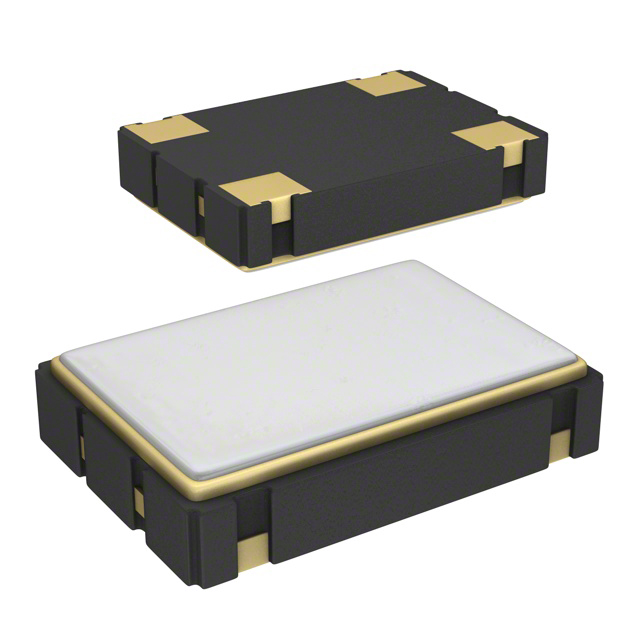

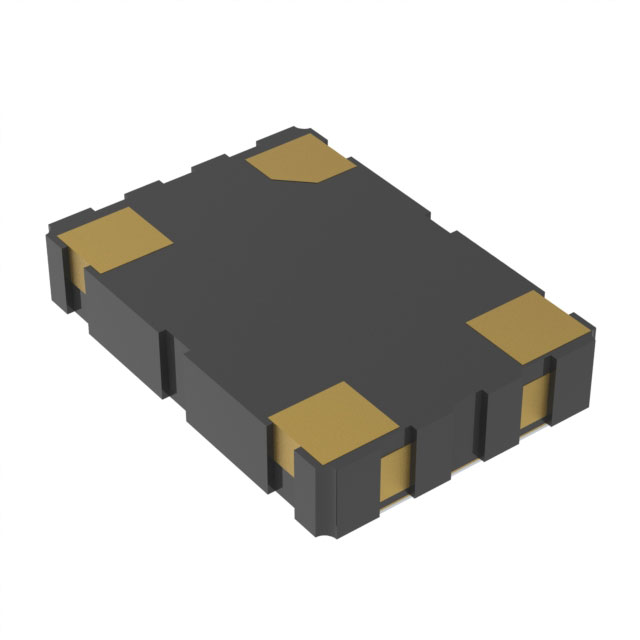

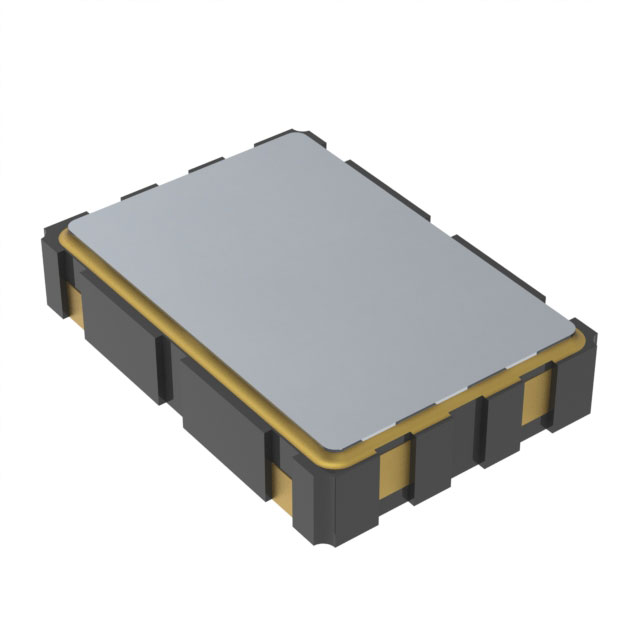

XTAL OSC XO 800.0000KHZ CMOS SMD

Part	Current - Supply (Disable) (Max) [Max]	Function	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Base Resonator [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)	Height - Seated (Max) [Max]	Voltage - Supply	Output	Type	Mounting Type	Frequency	Package / Case	Frequency Stability	Current - Supply (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Programmable Type	Frequency Stability (Total)	Available Frequency Range [Max]	Available Frequency Range [Min]
Skyworks Solutions Inc. 510CBBM800000BAG	18 mA	Enable/Disable	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	85 °C	-40 C	1.28 mm	0.05 in	3.3 V	CMOS	XO (Standard)	Surface Mount	800 kHz	4-SMD No Lead	25 ppm	26 mA
Skyworks Solutions Inc. 510CBB25M0000AAGR	18 mA	Enable/Disable		0.197 "	7 mm	0.276 "	Crystal	85 °C	-40 C		0.071 in	3.3 V	CMOS	XO (Standard)	Surface Mount	25 MHz	4-SMD No Lead	25 ppm	26 mA	1.8 mm	5 mm
Skyworks Solutions Inc. 510CBB10M7000BAG	18 mA	Enable/Disable	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	85 °C	-40 C	1.28 mm	0.05 in	3.3 V	CMOS	XO (Standard)	Surface Mount	10.7 MHz	4-SMD No Lead	25 ppm	26 mA
Skyworks Solutions Inc. 510CBB16M0000BAGR	18 mA	Enable/Disable	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	85 °C	-40 C	1.28 mm	0.05 in	3.3 V	CMOS	XO (Standard)	Surface Mount	16 MHz	4-SMD No Lead	25 ppm	26 mA
Skyworks Solutions Inc. 510CBB48M0000AAG	18 mA	Enable/Disable		0.197 "	7 mm	0.276 "	Crystal	85 °C	-40 C		0.071 in	3.3 V	CMOS	XO (Standard)	Surface Mount	48 MHz	4-SMD No Lead	25 ppm	26 mA	1.8 mm	5 mm
Skyworks Solutions Inc. 510CBB-CBAG	18 mA	Enable/Disable	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	85 °C	-40 C	1.28 mm	0.05 in	3.3 V	CMOS	XO (Standard)	Surface Mount		4-SMD No Lead	25 ppm	26 mA			Programmed by Digi-Key (Enter your frequency in Web Order Notes)	50 ppm	212.5 MHz	170 MHz
Skyworks Solutions Inc. 510CBBM800000BAGR	18 mA	Enable/Disable	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	85 °C	-40 C	1.28 mm	0.05 in	3.3 V	CMOS	XO (Standard)	Surface Mount	800 kHz	4-SMD No Lead	25 ppm	26 mA
Skyworks Solutions Inc. 510CBB3M68640BAGR	18 mA	Enable/Disable	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	85 °C	-40 C	1.28 mm	0.05 in	3.3 V	CMOS	XO (Standard)	Surface Mount	3.6864 MHz	4-SMD No Lead	25 ppm	26 mA
Skyworks Solutions Inc. 510CBB24M0000BAGR	18 mA	Enable/Disable	3.2 mm	0.126 in	5 mm	0.197 in	Crystal	85 °C	-40 C	1.28 mm	0.05 in	3.3 V	CMOS	XO (Standard)	Surface Mount	24 MHz	4-SMD No Lead	25 ppm	26 mA
Skyworks Solutions Inc. 510CBB11M0592AAGR	18 mA	Enable/Disable		0.197 "	7 mm	0.276 "	Crystal	85 °C	-40 C		0.071 in	3.3 V	CMOS	XO (Standard)	Surface Mount	11.0592 MHz	4-SMD No Lead	25 ppm	26 mA	1.8 mm	5 mm
