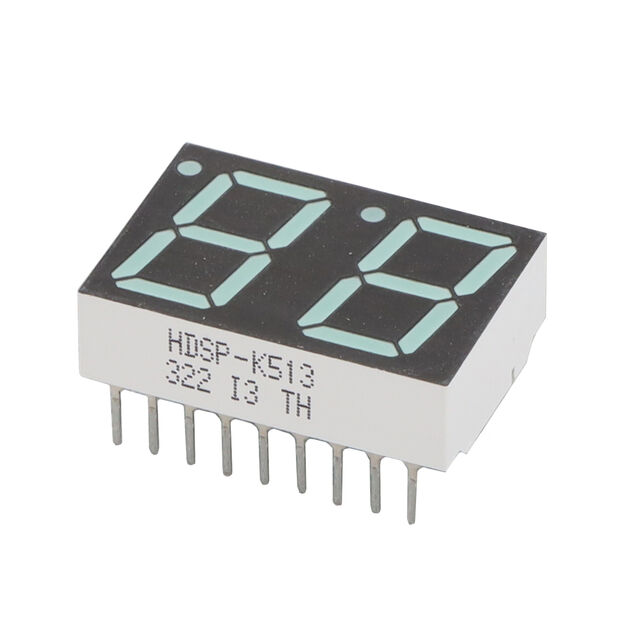

HDSP-K513 Series
Manufacturer: Broadcom Limited
Beta
⌘K
S4,0.56D,GRN,CC,T/S BLACK
| Part | Common Pin | Power Dissipation (Max) [Max] | Digit/Alpha Size | Digit/Alpha Size | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Package / Case [x] | Package / Case [x] | Package / Case | Wavelength - Peak | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Number of Characters | Current - Test | Color | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Common Cathode | 105 mW | 0.56 in | 14.22 mm | 2.1 V | 2.5 mcd | 15.24 mm | 0.6 in | 18-DIP | 566 nm | 17.02 mm | 0.99 " | 25.15 mm | 0.67 " | 8 mm | 0.315 in | 2 | 10 mA | Green | 7-Segment |
