C01610C015 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

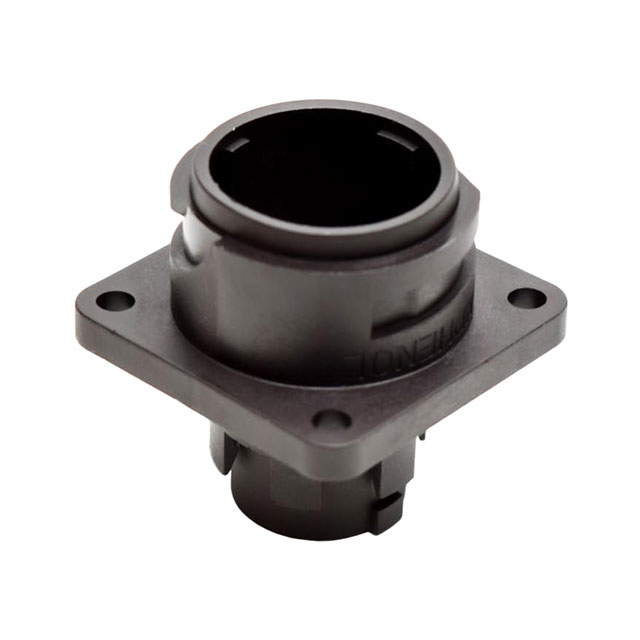

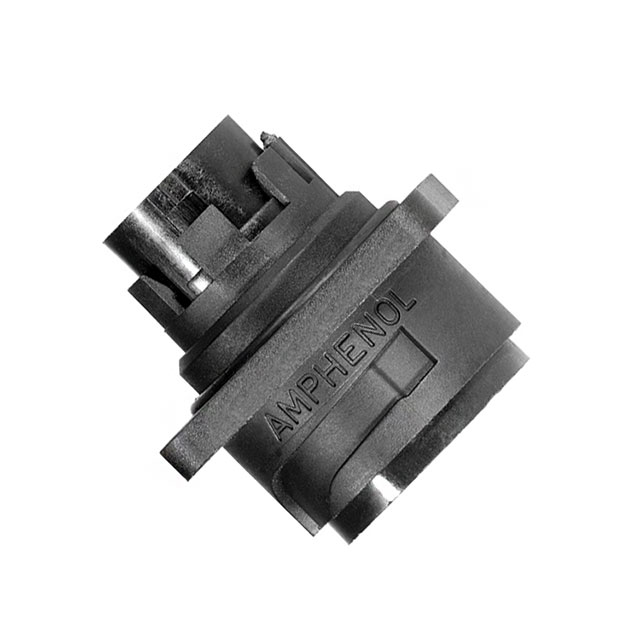

CONN RCPT HSNG MALE 16POS PNL MT
| Part | Contact Type | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Mounting Type | Note | Contact Size | Shell Size - Insert | Mounting Feature | Connector Type | Material Flammability Rating | Shielding | Orientation | Shell Material | Fastening Type | Housing Color | Contact Shape | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Crimp | IP65 - Dust Tight Water Resistant | 125 °C | -40 C | 16 | Panel Mount | Contacts Not Included | 1.5 mm 1.6 mm | 1 | Flange | Receptacle Housing | UL94 V-0 | Unshielded | N (Normal) | Nylon 6/6 Polyamide (PA66) | Bayonet Lock | Black | Circular | For Male Pins |
