KSA0V5 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Outline [y]	Outline [x]	Mounting Type	Actuator Type	Operating Force	Actuator Length, Right Angle [x]	Termination Style	Ingress Protection	Illumination	Actuator Orientation	Contact Rating @ Voltage	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Circuit	Switch Travel
Littelfuse/Commercial Vehicle Products KSA0V511LFT	8 mm	8 mm	Through Hole Right Angle	Standard	0.5 kgf	3.23 mm	PC Pin	IP60	Non-Illuminated	Side Actuated	0.05 A	Off-Mom	90 °C	-40 °C	100000 Cycles	SPST-NO	0.7 mm

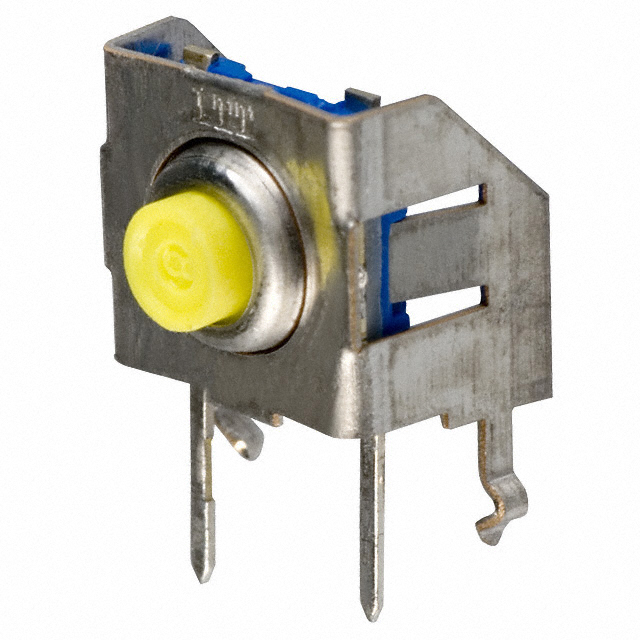

Littelfuse/Commercial Vehicle Products KSA0V511	8 mm	8 mm	Through Hole Right Angle	Standard	0.5 kgf	3.23 mm	PC Pin	IP60	Non-Illuminated	Side Actuated	0.05 A	Off-Mom	90 °C	-40 °C		SPST-NO
Littelfuse/Commercial Vehicle Products KSA0V511SANSETRIERLFT
Littelfuse/Commercial Vehicle Products KSA0V511 SS ETRIER LFTR
Littelfuse/Commercial Vehicle Products KSA0V511 CONNEXION 3,3 LFTR
Littelfuse/Commercial Vehicle Products KSA0V511C0NNEXI0N3.3LFT
Littelfuse/Commercial Vehicle Products KSA0V531LFT	8 mm	8 mm	Through Hole Right Angle	Standard	0.5 kgf	3.23 mm	PC Pin	IP60	Non-Illuminated	Side Actuated	0.01 A 32 VDC	Off-Mom	125 °C	-40 °C	100000 Cycles	SPST-NO	0.7 mm

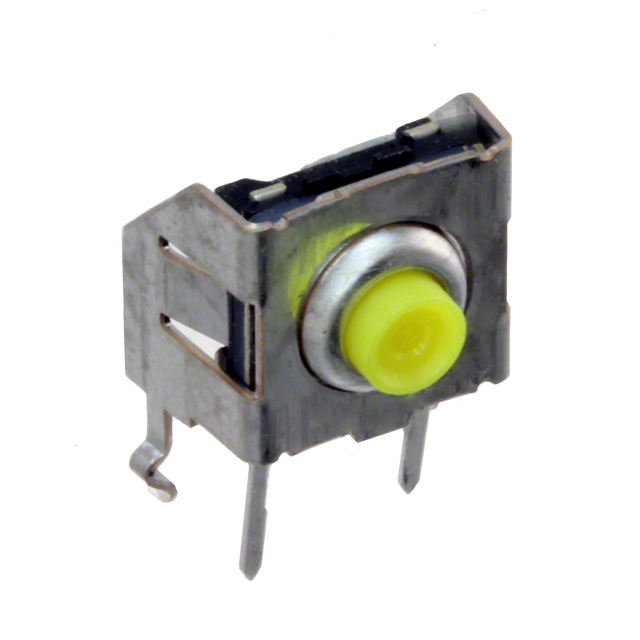

Littelfuse/Commercial Vehicle Products KSA0V511 LFTR	8 mm	8 mm	Through Hole Right Angle	Standard	0.5 kgf	3.23 mm	PC Pin	IP60	Non-Illuminated	Side Actuated	0.05 A	Off-Mom	90 °C	-40 °C	100000 Cycles	SPST-NO	0.7 mm
