VK202 Series

Catalog

VFD ALPHA/NUM DISPLAY 20X2

Part	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Viewing Area [y]	Viewing Area [x]	Format [y]	Format	Format [x]	Character Size [y]	Character Size [x]	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Operating Temperature [Max]	Operating Temperature [Min]	Display Format [x]	Display Format [y]	Display Type	Character Size [z]

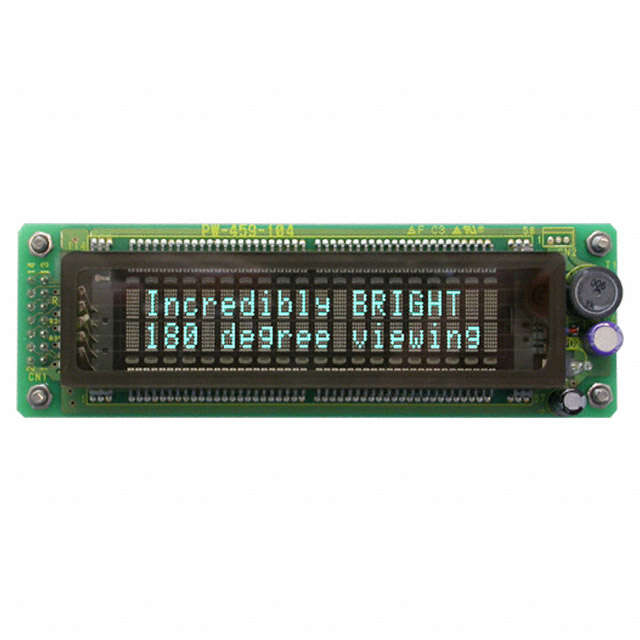

Matrix Orbital VK202-25-E	Serial	4.75 V	5.25 V	11.5 mm	89.75 mm	7	Dots	5 Dots	2.4 mm	4.7 mm	116 mm	29.48 mm	37 mm	85 °C	-40 C	20	2	Character

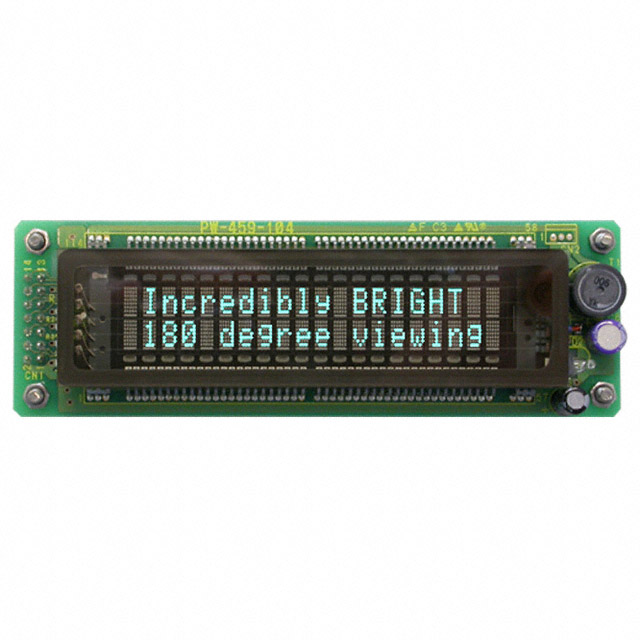

Matrix Orbital VK202-25-USB-E	USB	4.75 V	5.25 V	24 mm	96 mm	7	CURS	5 Dots	2.4 mm	4.7 mm	116 mm	29 mm	37 mm	85 °C	-40 C	20	4	Character

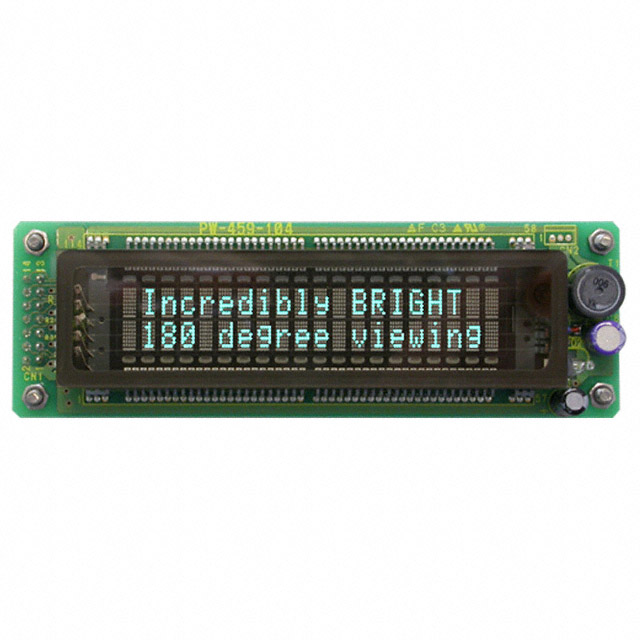

Matrix Orbital VK202-25-V	Serial	9 V	15 V	11.5 mm	89.75 mm	7	Dots	5 Dots	2.4 mm	4.7 mm	116 mm	29.48 mm	37 mm	70 °C	-20 ░C	20	2	Character

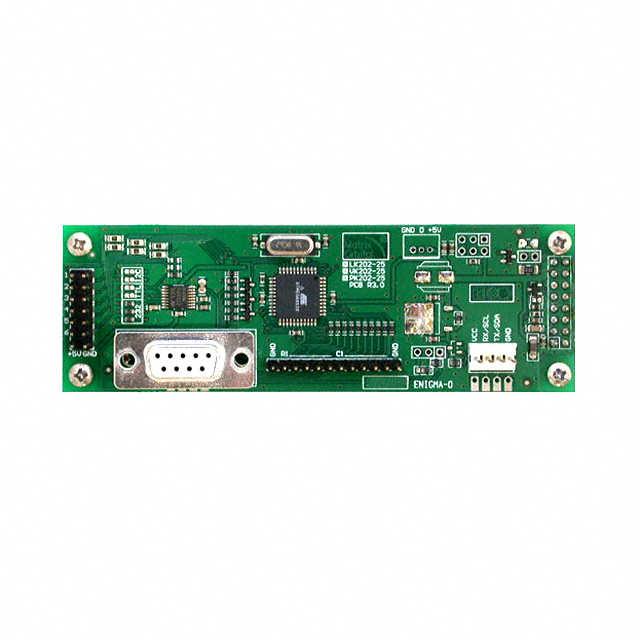

Matrix Orbital VK202-25	Serial			11.5 mm	89.75 mm	7	Dots	5 Dots	2.4 mm	4.7 mm	116 mm	29.48 mm	37 mm	70 °C	-20 ░C	20	2	Character
Matrix Orbital VK202-25-V-E	I2C	9 V	15 V	11.5 mm	70.8 mm				4.7 mm		116 mm	29.48 mm	37 mm	85 °C	-40 C	20	2	Character	2.4 mm

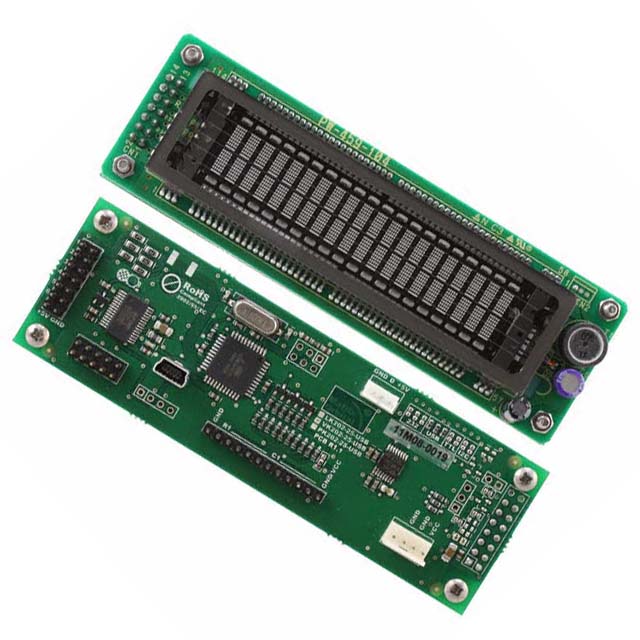

Matrix Orbital VK202-25-USB	USB	4.75 V	5.25 V	24 mm	96 mm	7	CURS	5 Dots	2.4 mm	4.7 mm	116 mm	29 mm	37 mm	70 °C	-20 ░C	20	2	Character
