JAZZ-AE Series
Manufacturer: Orient Display
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

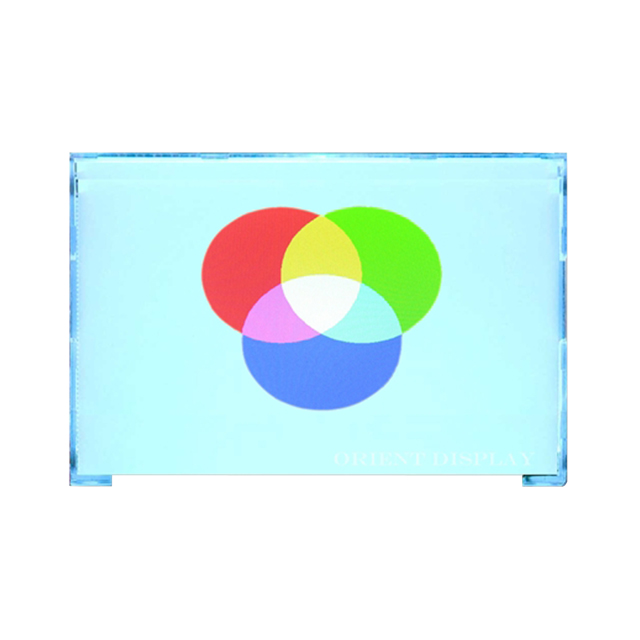

2.7" RGB LED BACKLIGHT WIRED
| Part | Color | Termination Style | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Green) | Voltage - Forward (Vf) (Typ) (Blue) | Voltage - Forward (Vf) (Typ) (Red) | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Style | Current - Test | CCT Colors | CCT Wavelength (Green) | CCT Wavelength (Blue) | CCT Wavelength (Red) | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Orient Display | Blue (RBG) Blue (RGB) Green Red | Wire Leads | Blue Green Red | 3 V | 2.9 V | 2 V | 5.2 mm | 48.5 mm | 71.2 mm | Rectangular | 60 mA | Blue Green Red | 523 nm | 468 nm | 623 nm | 70 °C | -30 °C |
