1609115 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Appliance Inlet	Filter Type	Termination	Termination	Termination	Connector Type	Fuse Holder, Drawer	Connector Style	Current Rating - Filter	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Mounting Type	Termination Style	Voltage - Rated DC	Configuration	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Current	Applications

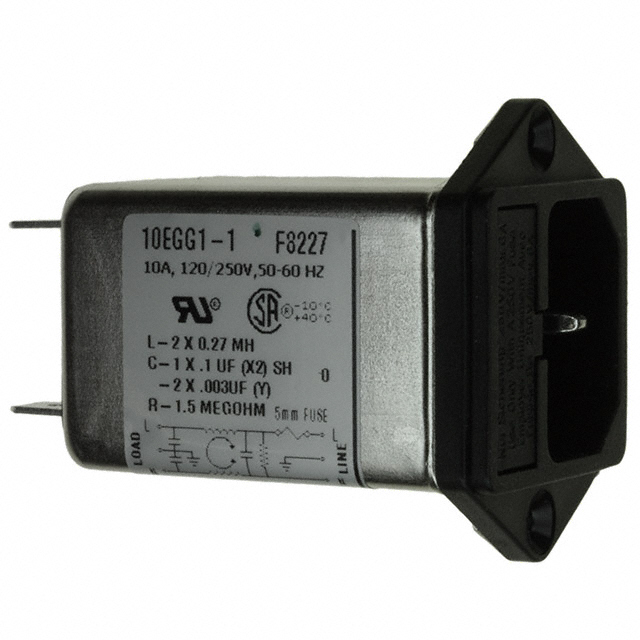

TE Connectivity Raychem Cable Protection 3-1609115-3	10 A	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Fuse Holder Twin Fused	IEC 320-C14	10 A	CSA UL VDE	33.02 mm	28.96 mm	250 VAC	120 VAC	Flange Panel Mount

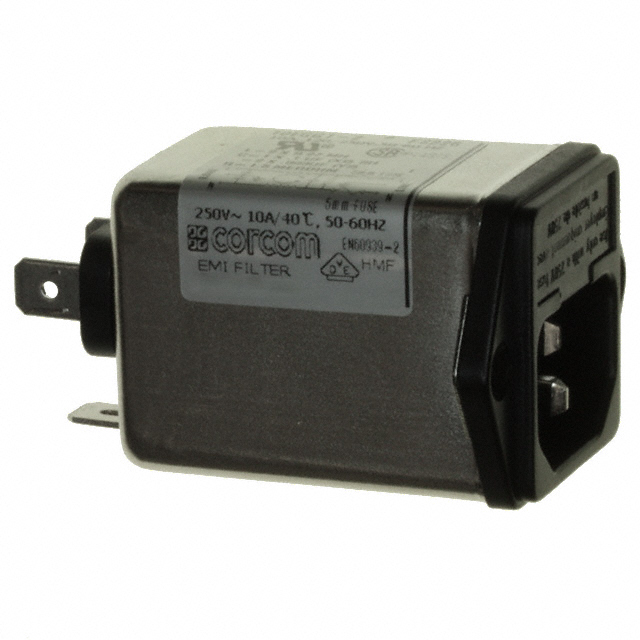

TE Connectivity Raychem Cable Protection 3-1609115-4	10 A	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Fuse Holder	IEC 320-C14	10 A	CSA UL VDE	33.02 mm	28.96 mm	250 VAC	120 VAC	Flange Panel Mount
TE Connectivity Raychem Cable Protection 6-1609115-2		DC								CSA TUV UR					Chassis Mount	Threaded Post (1/4-20)	80 V	Single Stage	55 °C	-10 °C	125 A	General Purpose

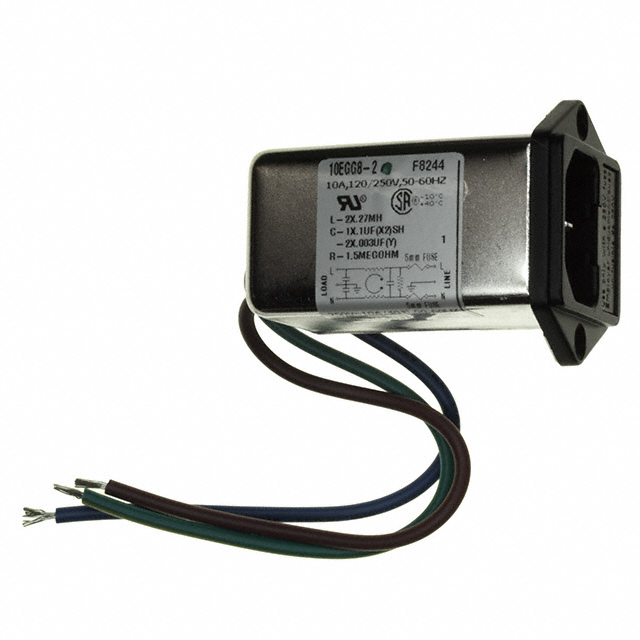

TE Connectivity Raychem Cable Protection 3-1609115-6	10 A	Filtered (EMI RFI) - Commercial			Wire Leads	Receptacle Male Blades - Module	Fuse Holder Twin Fused	IEC 320-C14	10 A	CSA UL VDE	33.02 mm	28.96 mm	250 VAC	120 VAC	Flange Panel Mount
