L77TWB13 Series
Manufacturer: Amphenol ICC (Commercial Products)
Catalog

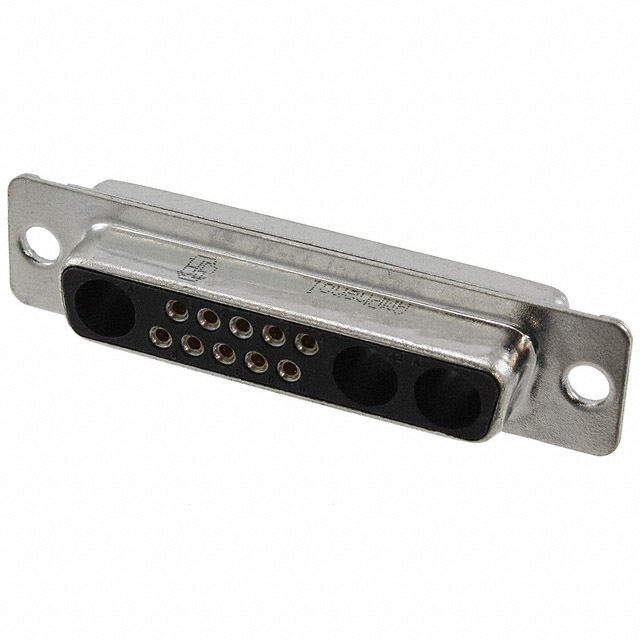

CONN D-SUB RCPT 13POS PNL MNT
| Part | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Voltage Rating | Contact Material | Shell Size, Connector Layout | Shell Size, Connector Layout | Current Rating (Amps) | Flange Feature | Number of Rows | Color | Connector Style | Dielectric Material | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Mounting Type | Termination | Features | Number of Positions [custom] | Contact Type | Number of Positions [custom] | Number of Positions [custom] | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 300 VDC | Bronze | 13C3 13W3 B DB | 3 | 7.5 A | Cable Side | 2 | Black | Combo D-Sub | Thermoplastic | 3 | 10 | 13 | |||||||||
Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 150 VDC 300 VDC | Bronze | 13C3 13W3 B DB | 3 | 0.5 A 7.5 A | Housing/Shell (Unthreaded) | 2 | Black | Combo D-Sub | Thermoplastic | 10 | Panel Mount Through Hole | Solder | Shielded | 3 | Coax Signal | ||||||
 Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 300 VDC | Bronze | 13C3 13W3 B DB | 3 | 7.5 A | Housing/Shell (Unthreaded) | 2 | Black | Combo D-Sub | Thermoplastic Glass Filled | 3 | 10 | 13 | |||||||||
Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 300 VDC | Bronze | 13C3 13W3 B DB | 3 | 7.5 A | 4-40 Board Side | 2 | Black | Combo D-Sub | Thermoplastic | Panel Mount Through Hole | Solder | Signal and Power | 10 | 3 | |||||||
Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 300 VDC | Bronze | 13C3 13W3 B DB | 3 | 7.5 A | Female Screwlock (4-40) Mating Side | 2 | Black | Combo D-Sub | Thermoplastic | Panel Mount Through Hole | Solder | Signal and Power | 10 | 3 | |||||||
Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 300 VDC | Bronze | 13C3 13W3 B DB | 3 | 7.5 A | Female Screwlock (4-40) Mating Side | 2 | Black | Combo D-Sub | Thermoplastic | Panel Mount Through Hole | Solder | Signal and Power | 10 | 3 | |||||||

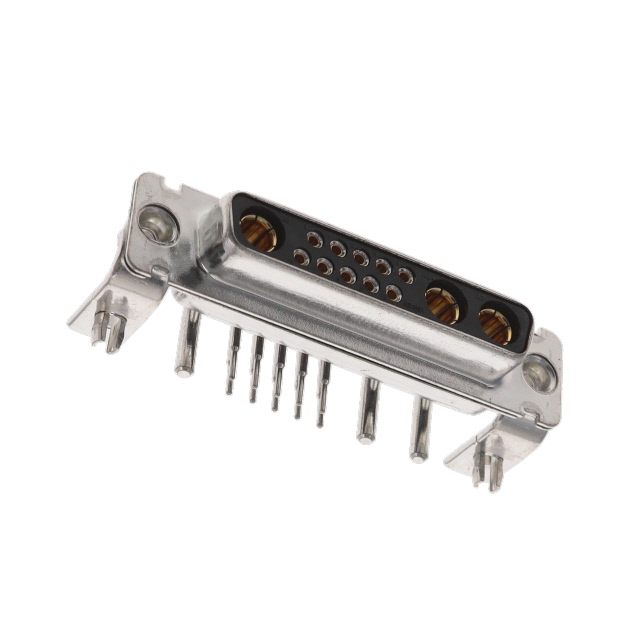

Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 300 VDC | Bronze | 13C3 13W3 B DB | 3 | 7.5 A | Female Screwlock (4-40) Mating Side | 2 | Black | Combo D-Sub | Thermoplastic | Panel Mount Right Angle Through Hole | Solder | Board Lock Mounting Brackets | Signal and Power | 10 | 3 | 0.319 in | 8.1 mm | ||||
 Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 300 VDC | Bronze | 13C3 13W3 B DB | 3 | 7.5 A | 4-40 Board Side | 2 | Black | Combo D-Sub | Thermoplastic | Panel Mount Right Angle Through Hole | Solder | Board Lock Mounting Brackets | Signal and Power | 10 | 3 | 0.319 in | 8.1 mm | ||||
Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 300 VDC | Bronze | 13C3 13W3 B DB | 3 | 7.5 A | 4-40 Board Side | 2 | Black | Combo D-Sub | Thermoplastic | Panel Mount Through Hole | Solder | Signal and Power | 10 | 3 | |||||||
Amphenol ICC (Commercial Products) | Receptacle Female Sockets | 155 °C | -55 °C | 16 µin | 0.41 µm | Gold | 300 VDC | Bronze | 13C3 13W3 B DB | 3 | Female Screwlock (4-40) Mating Side | 2 | Black | Combo D-Sub | Thermoplastic | 10 | Panel Mount Right Angle Through Hole | Solder | 3 | Coax Signal | 0.319 in | 8.1 mm |
