770972 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

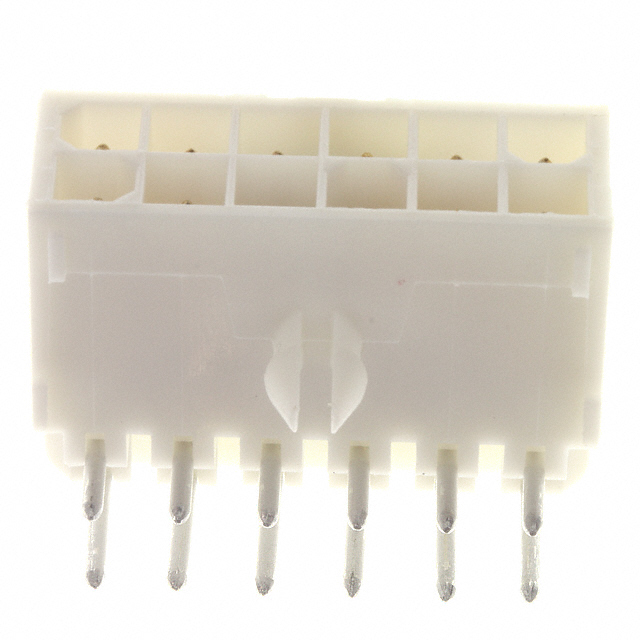

CONN HEADER R/A 12POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Contact Finish - Mating | Mounting Type | Material Flammability Rating | Insulation Material | Voltage Rating | Contact Finish - Post | Contact Shape | Features | Contact Material | Insulation Height | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Current Rating (Amps) | Insulation Color | Termination | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Number of Positions Loaded | Fastening Type | Style | Contact Type | Number of Positions | Shrouding | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Gold | Right Angle Through Hole | UL94 V-0 | Nylon Polyamide (PA) | 600 VAC | Tin-Lead | Circular | Board Lock | Brass | 9.8 mm | 0.386 in | 4.14 mm | 0.163 in | Varies by Wire Gauge | White | Solder | Header | -20 ░C | 105 ░C | 2 | All | Locking Ramp | Board to Cable/Wire | Male Pin | 12 | Shrouded - 4 Wall | 3.68 mm | 0.145 in | 0.76 Ám | 30 Áin | 0.163 in | 4.14 mm |
