XLFBB20 Series

Manufacturer: SunLED

Catalog

LED BLUE CLEAR T/H

Part	Millicandela Rating	Color	Lens Transparency	Lens Style	Current - Test	Lens Color	Mounting Type	Lens Size [y]	Lens Size [x]	Height (Max) [z]	Configuration	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Package / Case	Viewing Angle	Supplier Device Package	Height (Max) [Max] [z]

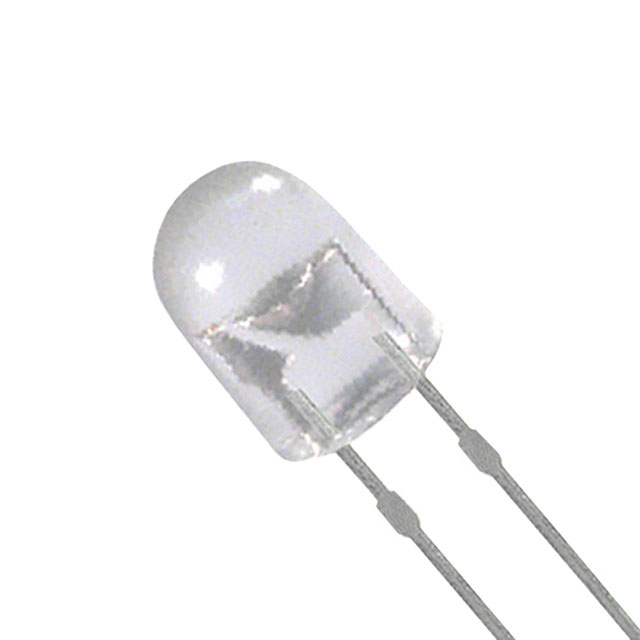

SunLED XLFBB20W	2190 mcd	Blue	Clear	Oval with Domed Top	20 mA	Colorless	Through Hole	3.8 mm	5.2 mm	8.5 mm	Standard	465 nm	3.3 V	470 nm	Radial	30 ° 70 °

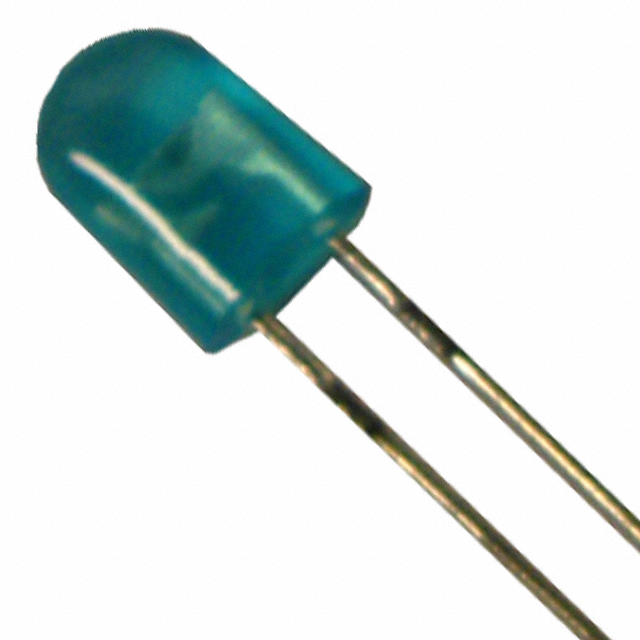

SunLED XLFBB20DLSDLCR	1195 mcd	Blue	Diffused	Oval with Domed Top	20 mA	Blue	Through Hole	3.8 mm	5.2 mm		Standard	465 nm	3.3 V	470 nm	Radial	50 ° 100 °	Radial Lead	7 mm
