3003-1551 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

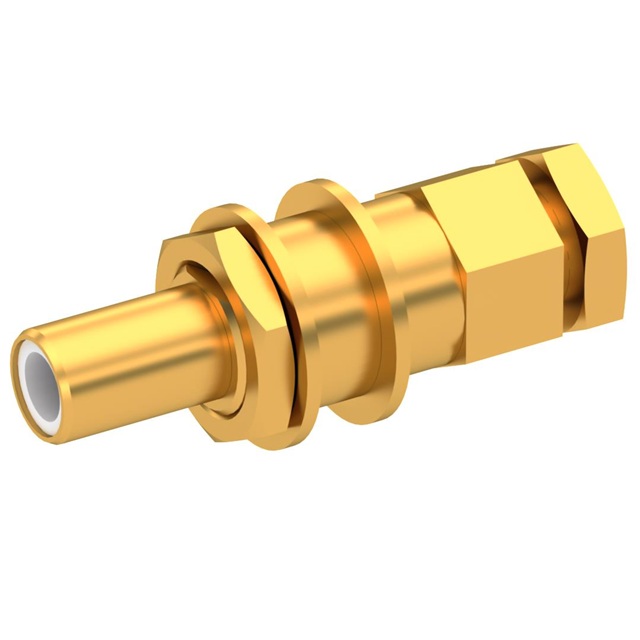

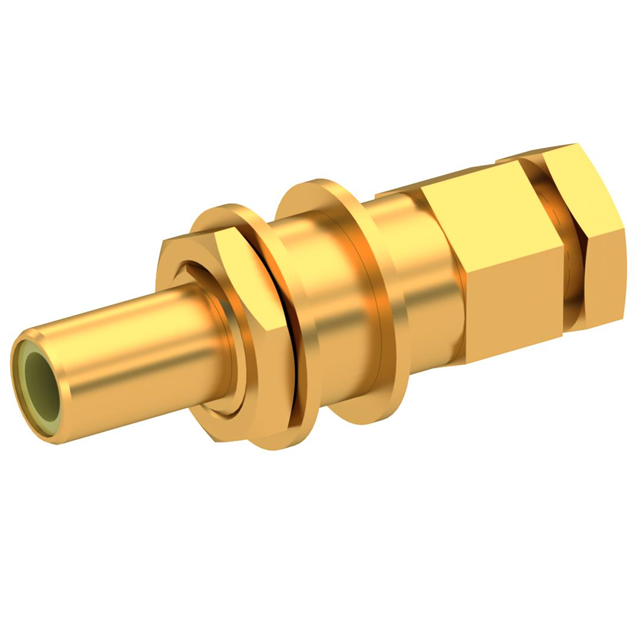

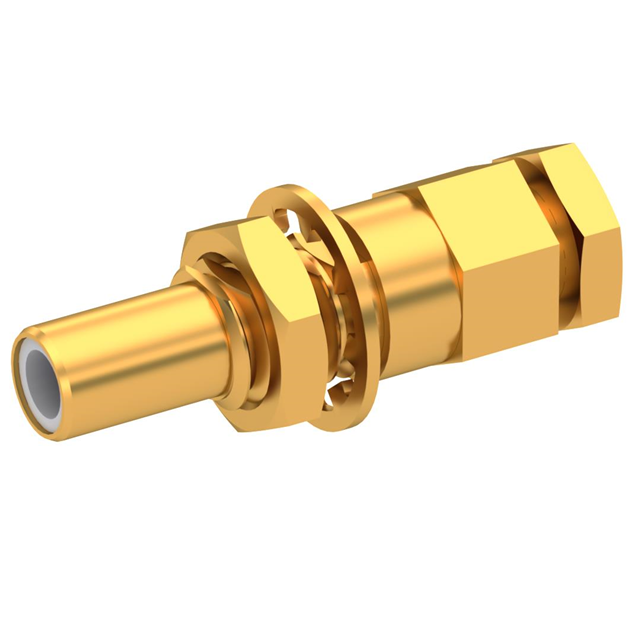

SLB / STRAIGHT JACK MALE CLAMP T
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Insertion Loss | Mating Cycles | Body Finish | Center Contact Plating | Voltage Rating | Number of Ports | Frequency - Max [Max] | Connector Style | Fastening Type | Mounting Feature | Housing Color | Mounting Type | Cable Group | Shield Termination | Impedance | Contact Termination | Center Contact Material | Connector Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 0.3 dB | 500 | Gold | Gold | 335 V | 1 | 4 GHz | SLB | Snap-On | Bulkhead - Front Side Nut | Gold | Panel Mount | 188 316 RG-174 | Clamp | 50 Ohms | Solder | Brass | Jack Male Pin | |
 Radiall USA, Inc. | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 0.3 dB | 500 | Gold | Gold | 335 V | 1 | 4 GHz | SLB | Snap-On | Bulkhead - Front Side Nut | Gold | Panel Mount | 188 316 RG-174 | Clamp | 50 Ohms | Solder | Brass | Jack Male Pin | |
 Radiall USA, Inc. | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 0.3 dB | 500 | Gold | Gold | 250 V | 1 | 4 GHz | SLB | Snap-On | Bulkhead - Front Side Nut | Gold | Panel Mount | RG-178 | Clamp | 50 Ohms | Solder | Brass | Jack Male Pin | 196 |
Radiall USA, Inc. | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 0.3 dB | 500 | Gold | Gold | 250 V | 1 | 4 GHz | SLB | Snap-On | Bulkhead - Front Side Nut | Gold | Panel Mount | RD-178 196 Double Braid | Clamp | 50 Ohms | Solder | Brass | Jack Male Pin |
