TRG36A18 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K

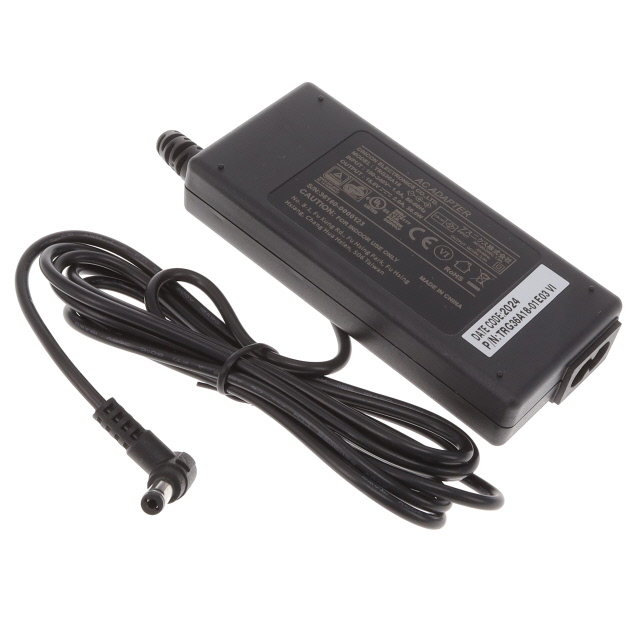

AC/DC DESKTOP ADAPTER 18V 36W
| Part | Current - Output (Max) [Max] | Region Utilized | Input Connector | Voltage - Input [Max] | Voltage - Input [Min] | Input Type | Efficiency | Voltage - Output | Power (Watts) | Output Connector | Output Connector [diameter] | Output Connector [z] | No Load Power Consumption | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Form | Cord Length | Cord Length | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Polarization | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 2 A | International | IEC 320-C8 | 264 VAC | 90 VAC | Cord (Sold Separately) | CoC Tier 2 Level VI | 18 V | 36 W | Barrel Plug R/A | 2.1 mm 5.5 mm | 12 mm | 75 mW | -20 ░C | 60 °C | CE cULus FCC GS PSE TUV | Desktop (Class II) | 70.9 " | 1.8 m | ITE (Commercial) | 111 mm | 51 mm | 4.37 in | 0.89 " | 22.5 mm | 2.01 " | Positive Center | 60950-1 62368-1 |
