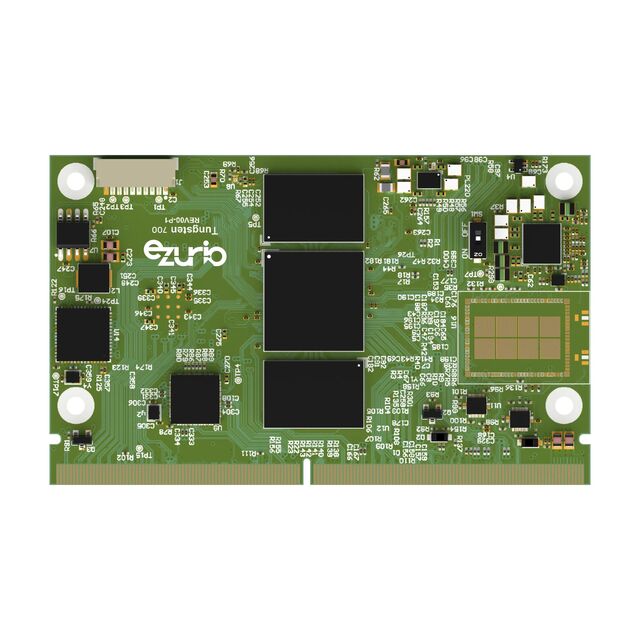

TUNGSTEN700 SMARC Series
Manufacturer: Ezurio LLC
Beta
⌘K
SBC 2.2GHZ 2/6 CORE 8GB/0GB RAM
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Number of Cores [Max] [custom] | Number of Cores [Min] [custom] | Speed | USB | Core Processor | Expansion Site/Bus | Operating Temperature [Max] | Operating Temperature [Min] | Storage Interface | RAM Capacity/Installed | Form Factor | Ethernet | Watchdog Timer | RAM Capacity/Installed | Video Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ezurio LLC | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 6 | 2 | 2 GHz 2.2 GHz | USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2) | ARM® Cortex®-A55 ARM® Cortex®-A78 | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | 70 °C | 0 °C | eMMC SPI | 4GB/- | SMARC2.1.1 | GbE (2) | |||
 Ezurio LLC | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 6 | 2 | 2 GHz 2.2 GHz | USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2) | ARM® Cortex®-A55 ARM® Cortex®-A78 | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | 70 °C | 0 °C | eMMC SPI | SMARC2.1.1 | GbE (2) | 8 GB | |||
Ezurio LLC | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 6 | 2 | 2 GHz 2.2 GHz | USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2) | ARM® Cortex®-A55 ARM® Cortex®-A78 | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | 70 °C | 0 °C | eMMC SPI | SMARC2.1.1 | GbE (2) | 8 GB | DP HDMI MIPI-CSI MIPI-DSI | ||
Ezurio LLC | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 6 | 2 | 2 GHz 2.2 GHz | USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2) | ARM® Cortex®-A55 ARM® Cortex®-A78 | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | 70 °C | 0 °C | eMMC SPI | 4GB/- | SMARC2.1.1 | GbE (2) | DP HDMI MIPI-CSI MIPI-DSI |
