69253 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

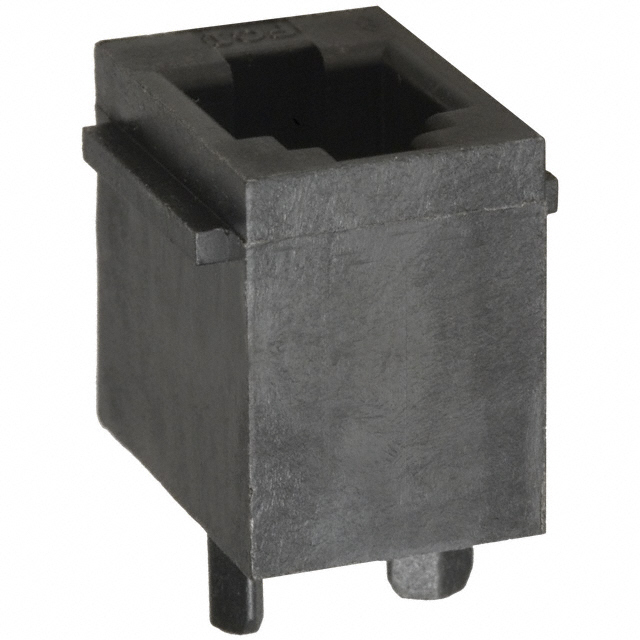

CONN MOD JACK 4P4C VERT UNSHLD
| Part | Tab Direction | Orientation | Number of Ports | Housing Material | Termination | Shielding | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | LED Color | Contact Finish Thickness | Contact Finish Thickness | Ratings | Number of Positions/Contacts | Features | Number of Rows | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | User Selectable | Vertical | 1 | Polyamide (PA) Nylon Glass Filled | Solder | Unshielded | Copper Alloy | -40 °C | 70 °C | Gold | Does Not Contain LED | 0.127 µm | 5 µin | Cat3 | 4p4c | Board Guide Panel Stops | 1 | Through Hole | Jack |
Amphenol ICC (FCI) | User Selectable | Vertical | 1 | Solder | Unshielded | -40 °C | 70 °C | Gold | Does Not Contain LED | 1.27 µm | 50 µin | Cat3 | 4p4c | 1 | Through Hole | Jack |
