345-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.100

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features	Gender	Pitch [x]	Pitch [x]	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Card Type	Material - Insulation	Color	Termination	Number of Rows	Mounting Type	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature

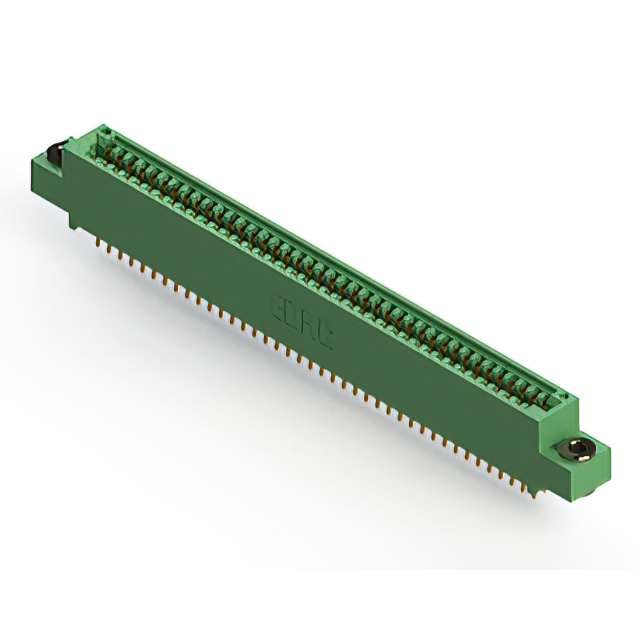

EDAC Inc. 345-080-556-503	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Card Extender	Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Solder	2	Board Edge Straddle Mount	40
EDAC Inc. 345-080-558-812	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever		Side Mount Opening Unthreaded			Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Solder	2	Through Hole Right Angle	40	3.25 mm	0.128 in
EDAC Inc. 345-080-558-808	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever		4-40 Threaded Insert Top Mount Opening			Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Solder	2	Through Hole Right Angle	40
EDAC Inc. 345-080-540-508	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever		4-40 Threaded Insert Top Mount Opening			Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Wire Wrap	2	Through Hole	40
EDAC Inc. 345-080-555-288	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever		4-40 Flush Mount Threaded Insert Top Opening			Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Solder Eyelet(s)	2	Board Edge Straddle Mount	40

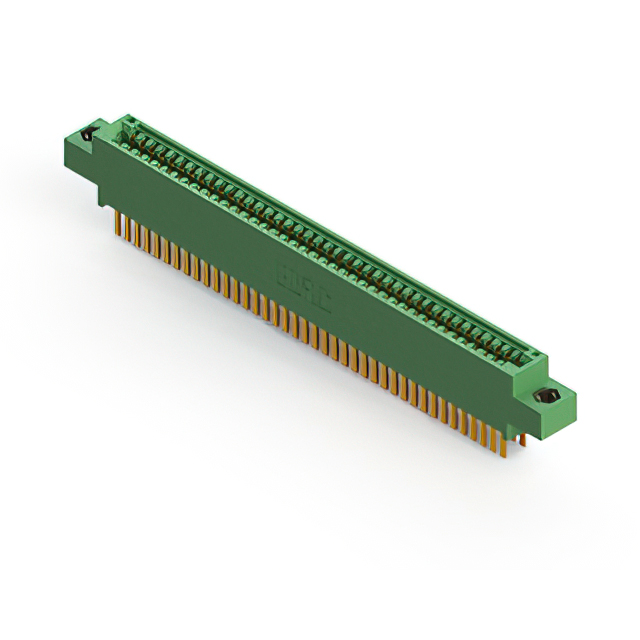

EDAC Inc. 345-080-544-807	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever		M3 Threaded Insert Top Mount Opening			Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Wire Wrap	2	Through Hole	40
EDAC Inc. 345-080-524-807	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever		M3 Threaded Insert Top Mount Opening			Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Solder	2	Through Hole	40
EDAC Inc. 345-080-560-502	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever				Card Extender	Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Solder	2	Board Edge Straddle Mount	40	3.25 mm	0.128 in
EDAC Inc. 345-080-520-878	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever		4-40 Threaded Insert Top Mount Opening		Card Guides	Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Solder	2	Through Hole	40
EDAC Inc. 345-080-500-807	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever		M3 Threaded Insert Top Mount Opening			Female	2.54 mm	0.1 in	Copper Alloy	80	-40 °C	105 ░C	Dual	Gold	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Polyester Thermoplastic	Green	Solder Eyelet(s)	2	Through Hole	40
