000856 Series
Manufacturer: Molex
Beta
⌘K

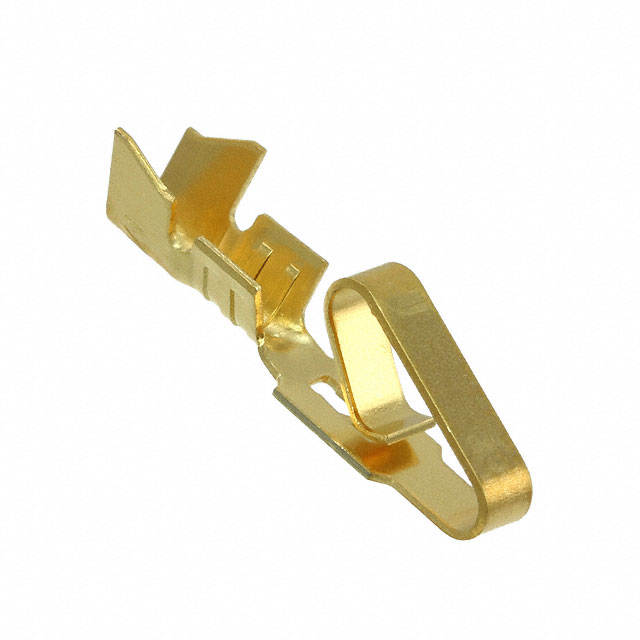

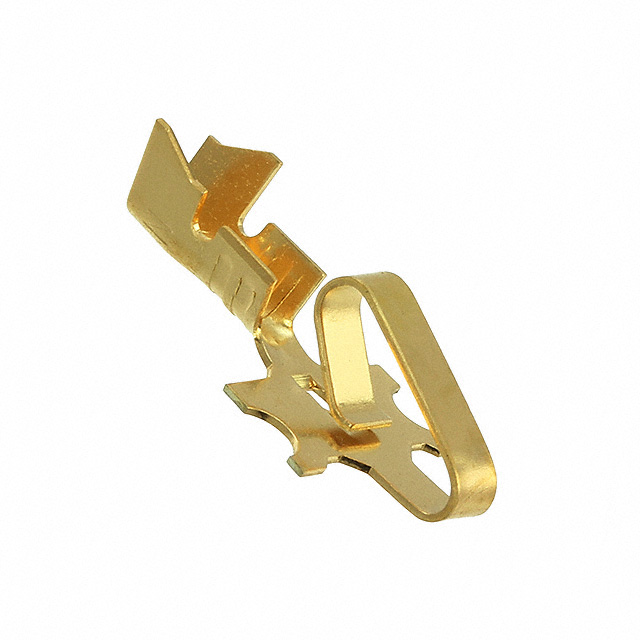

CONTACT SKT CRIMP ST CABLE MOUNT 22-26AWG KK® REEL
| Part | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pin or Socket | Wire Gauge [Max] | Wire Gauge [Min] | Pin Size - Above Flange | Pin Size - Above Flange | Contact Material | Terminal Style | Pin Size - Below Flange | Pin Size - Below Flange | Insulation | Length - Overall | Length - Overall | Board Thickness | Board Thickness | Termination | Mounting Type | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Max] [diameter] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Crimp | 0.38 µm | 15 µin | Gold | Non-Gendered | 26 AWG | 22 AWG | ||||||||||||||||||
 Molex | Crimp | 0.51 µm | 20 µin | Gold | Non-Gendered | 26 AWG | 22 AWG | ||||||||||||||||||
 Molex | 0.51 µm | 20 µin | Gold | 1.14 mm | 0.045 " | Brass | Smooth | 0.045 in | 1.14 mm | Non-Insulated | 1.562 in | 39.67 mm | 1.57 mm | 0.062 " | Press-Fit | Through Hole | 1.27 mm | 0.05 " | 0.053 " | 1.35 mm | Single Post | ||||
Molex | Crimp | 0.51 µm | 20 µin | Gold | Non-Gendered | 24 AWG | 17.5 AWG | ||||||||||||||||||
 Molex | Crimp | 0.51 µm | 20 µin | Gold | Non-Gendered | 24 AWG | 17.5 AWG | ||||||||||||||||||
 Molex | Crimp | 0.51 µm | 20 µin | Gold | Non-Gendered | 24 AWG | 17.5 AWG |
