DP1RD20J Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCP 1.1A DISPLAYPORT SMD RA
| Part | Insulation Color | Material Flammability Rating | Contact Finish | Shell/Shielding Material | Features | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Number of Contacts | Current Rating (Amps) | Mating Cycles | Number of Ports | Termination | Specifications | Shielding | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

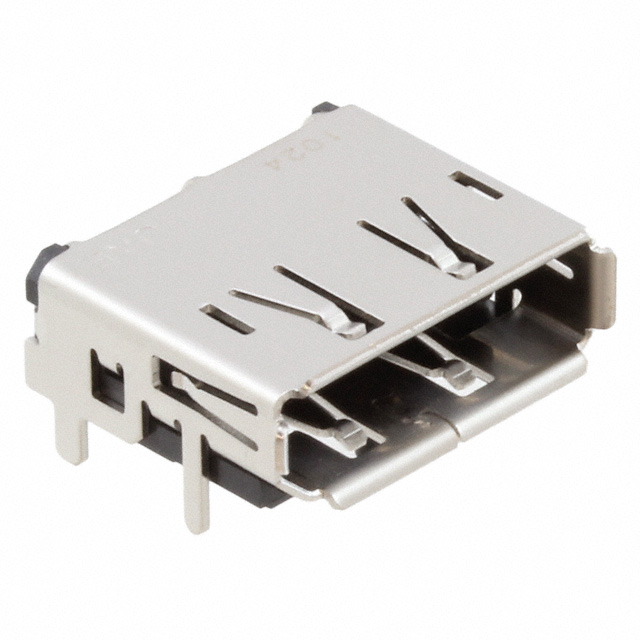

 JAE Electronics | Black | UL94 V-0 | Gold | Copper Alloy | Solder Retention | Receptacle | 85 °C | -20 ░C | Horizontal Reverse Mount | 20 | 500 mA | 10000 | 1 | Solder | Display Port 1.1a | Unshielded | DisplayPort | Right Angle Surface Mount |

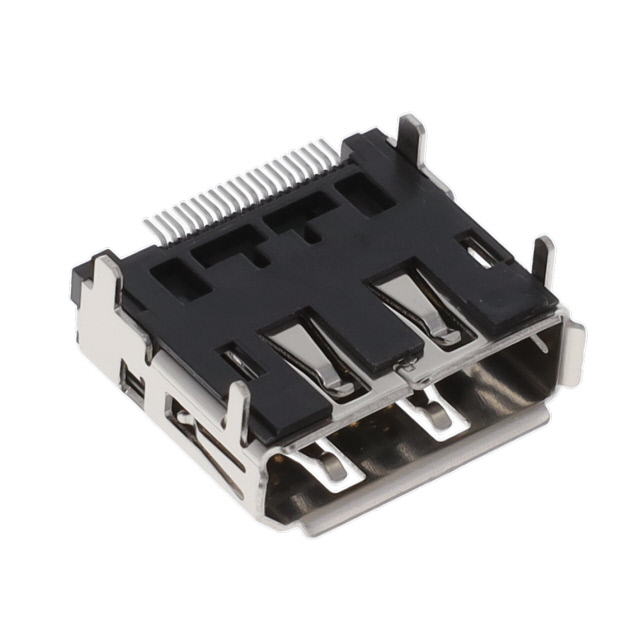

 JAE Electronics | Black | UL94 V-0 | Gold | Copper Alloy | Board Guide | Receptacle | 85 °C | -20 ░C | Horizontal | 20 | 500 mA | 10000 | 1 | Solder | Display Port 1.1a | Unshielded | DisplayPort | Right Angle Surface Mount |
