BD7284F-LB Series

Nano Cap™, Low Noise Rail-to-Rail Input/Output High Speed CMOS Operational Amplifiers

Catalog

Nano Cap™, Low Noise Rail-to-Rail Input/Output High Speed CMOS Operational Amplifiers

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Min) [Min]	Output Type	Gain Bandwidth Product	Current - Output / Channel	Voltage - Input Offset	Slew Rate	Package / Case [custom]	Package / Case	Package / Case [custom]	Mounting Type	Voltage - Supply Span (Max) [Max]	Number of Circuits	Current - Input Bias	Amplifier Type	Supplier Device Package	Current - Supply

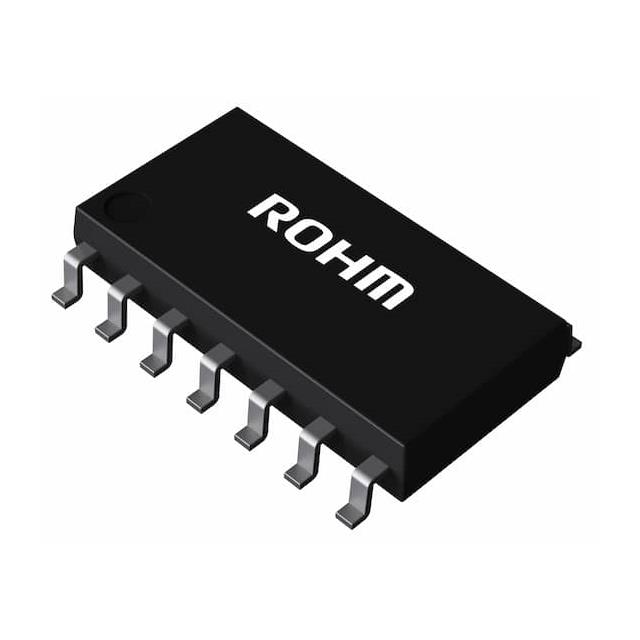

Rohm Semiconductor BD7284F-LBE2	125 °C	-40 °C	2.5 V	Push-Pull Rail-to-Rail	7 MHz	50 mA	10 µV	10 V/çs	4.4 mm	14-SOIC	0.173 "	Surface Mount	5.5 V	4	0.5 pA	Standard	14-SOP	6.8 mA

Catalog

Nano Cap™, Low Noise Rail-to-Rail Input/Output High Speed CMOS Operational Amplifiers

Key Features

• Nano Cap™ Integrated OPAMP, Long Time Support Product for Industrial Applications, Low Input-referred Noise Voltage Density, Rail-to-Rail Input/Output

Description

This is the product guarantees long time support in Industrial market. This product are Rail-to-Rail Input/Output monolithic ICs integrated dual or quad independent CMOS Op-Amps on a single chip. These features high slew rate, low noise and low input bias current. It is suitable for equipment operating from battery power and using sensors that an amplifier.Furthermore, this circuit type does not oscillate even with a capacitance of 1 nF. Set design is possible without worrying about oscillation due to output capacitance.What is Nano Cap™?Nano Cap™ is a combination of technologies which allow stable operation even if output capacitance is connected with the range of nF unit.
