R16101 Series

Catalog

N / STRAIGHT PLUG CLAMP TYPE CAB

Part	Insertion Loss	Mating Cycles	Dielectric Material	Body Finish	Body Material	Center Contact Plating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Contact Termination	Shield Termination	Connector Style	Connector Type	Frequency - Max [Max]	Number of Ports	Mounting Type	Impedance	Center Contact Material	Ingress Protection	Housing Color	Fastening Type	Includes
Radiall USA, Inc. R161010000W	0.15 dB	500	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Gold	850 V	155 C	-55 C	141 142 223 400 RG-58	Solder	Clamp	N Type	Plug Male Pin	11 GHz	1	Free Hanging (In-Line)	50 Ohms	Brass	IP67 - Dust Tight Waterproof	Silver	Threaded
Radiall USA, Inc. R161018000	0.15 dB	500	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Gold	850 V	155 C	-55 C	144 165 213 214 216 225 393 RG-11	Solder	Clamp	N Type	Plug Male Pin	11 GHz	1	Free Hanging (In-Line)	50 Ohms	Brass	IP67 - Dust Tight Waterproof	Silver	Threaded

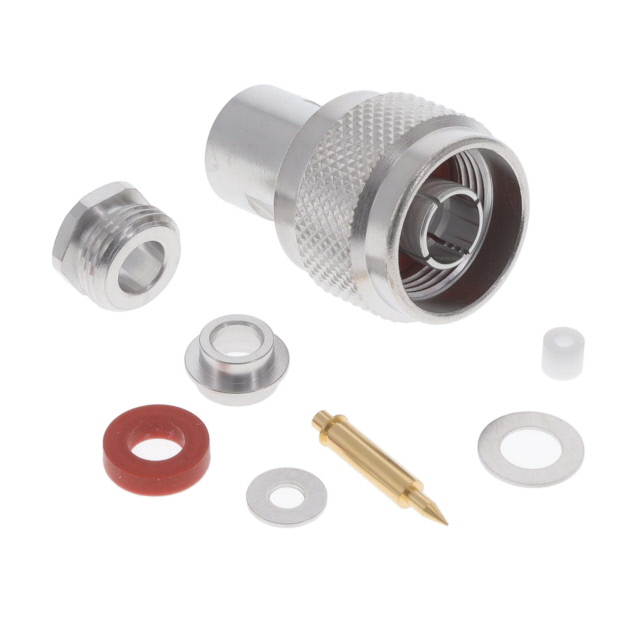

Radiall USA, Inc. R161010000		500	Polytetrafluoroethylene (PTFE)		Brass	Gold	850 V	155 C	-55 C	141 142 223 400 RG-58	Solder	Clamp	N Type	Plug Male Pin	11 GHz	1	Free Hanging (In-Line)	50 Ohms	Brass			Threaded	1 Braid Clamp 1 Clamp Nut 1 Contact 1 Gasket 1 Sleeve 2 Washer 8 pcs - 1 Connector

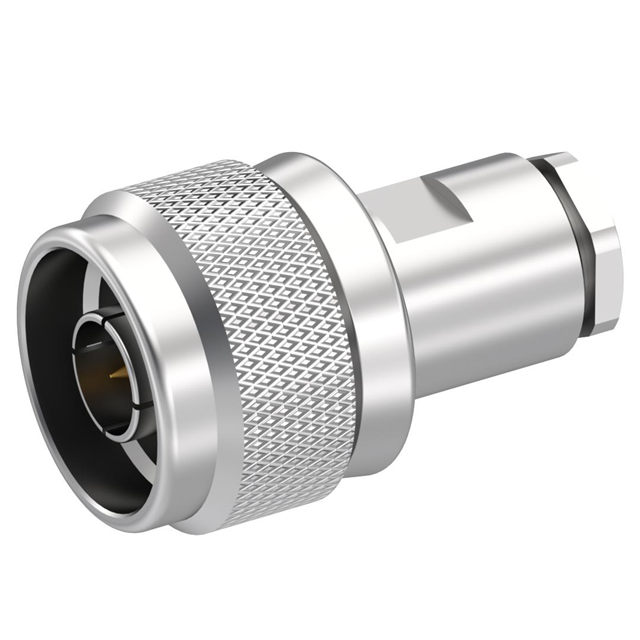

Radiall USA, Inc. R161012000	0.15 dB	500	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Gold	850 V	155 C	-55 C	62 71 RG-59	Solder	Clamp	N Type	Plug Male Pin	11 GHz	1	Free Hanging (In-Line)	50 Ohms	Brass	IP67 - Dust Tight Waterproof	Silver	Threaded
Radiall USA, Inc. R161018000W	0.15 dB	500	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Gold	850 V	155 C	-55 C	144 165 213 214 216 225 393 RG-11	Solder	Clamp	N Type	Plug Male Pin	11 GHz	1	Free Hanging (In-Line)	50 Ohms	Brass	IP67 - Dust Tight Waterproof	Silver	Threaded
