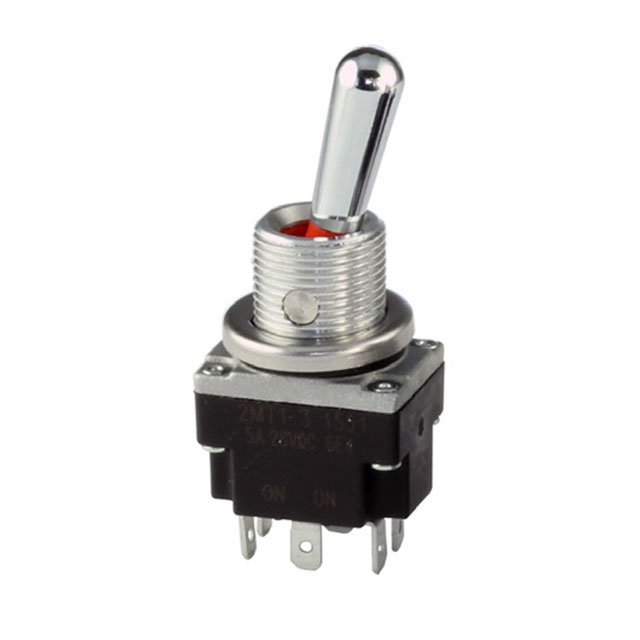

2MT2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH TOGGLE DPDT 0.1A 28V
| Part | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Ingress Protection | Panel Cutout Dimensions [diameter] | Illumination | Bushing Thread | Mounting Type | Actuator Type | Switch Function | Voltage Rating - DC | Termination Style | Actuator Length [x] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 60000 Cycles | 85 °C | -40 C | 100 mA | IP67 - Dust Tight Waterproof | 12.45 mm | Non-Illuminated | 15/32-32 | Panel Mount | Standard Round | On-Mom | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16.87 mm | DPDT |
Honeywell Sensing and Productivity Solutions | 60000 Cycles | 85 °C | -40 C | 100 mA | IP67 - Dust Tight Waterproof | 12.45 mm | Non-Illuminated | 15/32-32 | Panel Mount | Standard Round | Mom-Off-Mom | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16.87 mm | DPDT |
Honeywell Sensing and Productivity Solutions | 60000 Cycles | 85 °C | -40 C | 100 mA | IP67 - Dust Tight Waterproof | 12.45 mm | Non-Illuminated | 15/32-32 | Panel Mount | Standard Round | On-Mom | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16.87 mm | DPST-NC |
Honeywell Sensing and Productivity Solutions | 60000 Cycles | 85 °C | -40 C | 100 mA | IP67 - Dust Tight Waterproof | 12.45 mm | Non-Illuminated | 15/32-32 | Panel Mount | Standard Round | On-Off | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16.87 mm | DPST |
 Honeywell Sensing and Productivity Solutions | 60000 Cycles | 85 °C | -40 C | 100 mA | IP67 - Dust Tight Waterproof | 12.45 mm | Non-Illuminated | 15/32-32 | Panel Mount | Standard Round | On-Off-On | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16.87 mm | DPDT |
Honeywell Sensing and Productivity Solutions | 60000 Cycles | 85 °C | -40 C | 100 mA | IP67 - Dust Tight Waterproof | 12.45 mm | Non-Illuminated | 15/32-32 | Panel Mount | Standard Round | On-Off-Mom | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16.87 mm | DPDT |
Honeywell Sensing and Productivity Solutions | 60000 Cycles | 85 °C | -40 C | 100 mA | IP67 - Dust Tight Waterproof | 12.45 mm | Non-Illuminated | 15/32-32 | Panel Mount | Standard Round | Off-Mom | 28 V | Solder Quick Connect - 0.110" (2.8mm) | 16.87 mm | DPST-NO |
