E5CB-R1 Series

Catalog

CONTROL TEMP RELAY OUT 24V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Characters - Height [z]	Display Characters - Height [z]	Output Type	Mounting Type	Input Range [Max]	Input Range [Min]	Voltage - Supply	Ingress Protection	Termination Style	Type	Number of Characters Per Row	Number of Characters Per Row	Display Type	Control Method	Voltage - Supply [Max]	Voltage - Supply [Min]
Omron Automation and Safety E5CB-R1PD AC/DC24	55 °C	-10 °C	100.24 g	0.221 lb	45 mm	45 mm	0.638 in	16.2 mm	Relay (2)	Panel Mount	850 °C	-200 °C	24 VAC	IP66 - Dust Tight Water Resistant	Screw Terminal	Temperature Controller (RTD)	4	4	LED - Dual Color Characters	On/Off Proportional (PID)

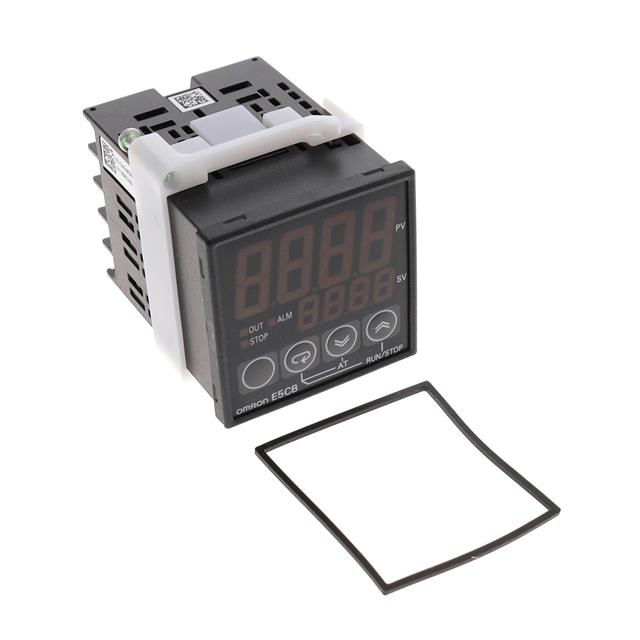

Omron Automation and Safety E5CB-R1P AC100-240	55 °C	-10 °C	100.24 g	0.221 lb	45 mm	45 mm	0.638 in	16.2 mm	Relay (2)	Panel Mount	850 °C	-200 °C		IP66 - Dust Tight Water Resistant	Screw Terminal	Temperature Controller (RTD)	4	4	LED - Dual Color Characters	On/Off Proportional (PID)	240 VAC	100 VAC
Omron Automation and Safety E5CB-R1TC AC100-240	55 °C	-10 °C	100.24 g	0.221 lb	45 mm	45 mm	0.638 in	16.2 mm	Relay (2)	Panel Mount	1700 °C	-200 °C		IP66 - Dust Tight Water Resistant	Screw Terminal	Temperature Controller (Type J K R S T)	4	4	LED - Dual Color Characters	On/Off Proportional (PID)	240 VAC	100 VAC
