0312-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

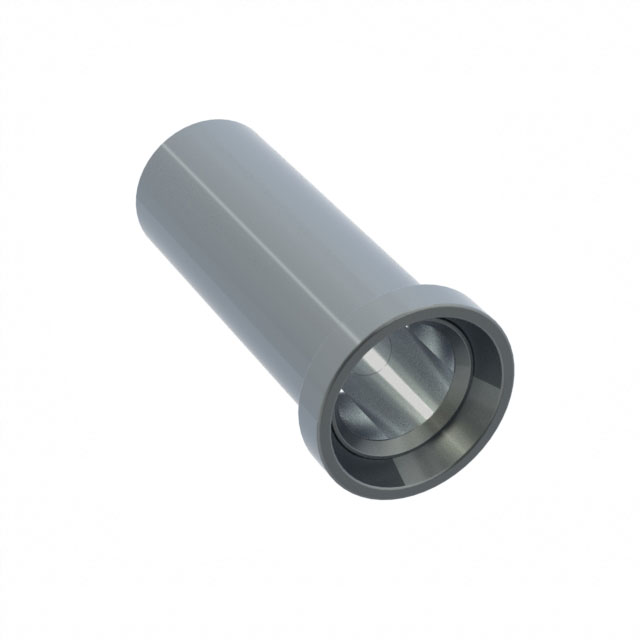

CONN RECEPT PIN .032-.046" .075"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tail Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Material | Socket Depth | Socket Depth | Contact Finish | Termination | Length - Overall [x] | Length - Overall [x] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | No Tail | 0.075 " | 1.91 mm | 1.63 mm | 0.064 in | Beryllium Copper | 0.206 " | 5.23 mm | Gold | Solder | 5.23 mm | 0.206 in | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 2.31 mm | 0.091 " | 0.25 Ám | 10 Áin |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | No Tail | 0.075 " | 1.91 mm | 1.63 mm | 0.064 in | Beryllium Copper | 0.206 " | 5.23 mm | Tin-Lead | Solder | 5.23 mm | 0.206 in | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 2.31 mm | 0.091 " | 5.08 Ám | 200 Áin |
