EEF-UE Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

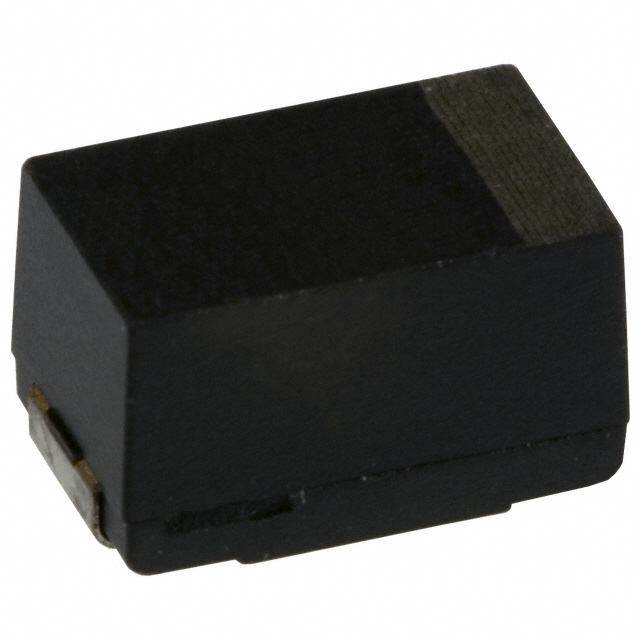

CAP ALUM POLY 220UF 20% 6.3V SMD

Part	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Lifetime @ Temp.	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Tolerance	Mounting Type	Height - Seated (Max)	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)
Panasonic Industrial Automation Sales EEF-UE0J221CR	220 µF	0.169 "	4.3 mm	7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V	-40 °C	105 ░C	General Purpose	20 %	Surface Mount
Panasonic Industrial Automation Sales EEF-UE0G181XE	180 çF	0.165 in		7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	4 V	-40 °C	105 ░C	General Purpose	20 %	Surface Mount	4.2 mm	3.5 A	10 mOhm
Panasonic Industrial Automation Sales EEF-UE0J151CR	150 µF	0.169 "	4.3 mm	7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V	-40 °C	105 ░C	General Purpose	20 %	Surface Mount
Panasonic Industrial Automation Sales EEF-UE0J151CE	150 µF	0.169 "	4.3 mm	7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V	-40 °C	105 ░C	General Purpose	20 %	Surface Mount
Panasonic Industrial Automation Sales EEF-UE0D391XR	390 µF	0.165 in		7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	2 VDC	-40 °C	105 ░C	General Purpose	20 %	Surface Mount	4.2 mm		10 mOhm
Panasonic Industrial Automation Sales EEF-UE0E271ER	270 µF	0.169 "	4.3 mm	7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V	-40 °C	105 ░C	General Purpose	20 %	Surface Mount		3.3 A	12 mOhms
Panasonic Industrial Automation Sales EEF-UE0E391LE	390 µF	0.165 in		7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V	-40 °C	105 ░C	General Purpose	20 %	Surface Mount	4.2 mm	3.7 A	7 mOhms
Panasonic Industrial Automation Sales EEF-UE0G221ER	220 µF	0.165 in		7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	4 V	-40 °C	105 ░C	General Purpose	20 %	Surface Mount	4.2 mm	3.3 A	12 mOhms
Panasonic Industrial Automation Sales EEF-UE0G271R	270 µF	0.165 in		7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	4 V	-40 °C	105 ░C	General Purpose	20 %	Surface Mount	4.2 mm		12 mOhms
Panasonic Industrial Automation Sales EEF-UE0J221ER	220 µF	0.165 in		7343 Metric	2917	1000 Hrs	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V	-40 °C	105 ░C	General Purpose	20 %	Surface Mount	4.2 mm	3 A	15 mOhm
