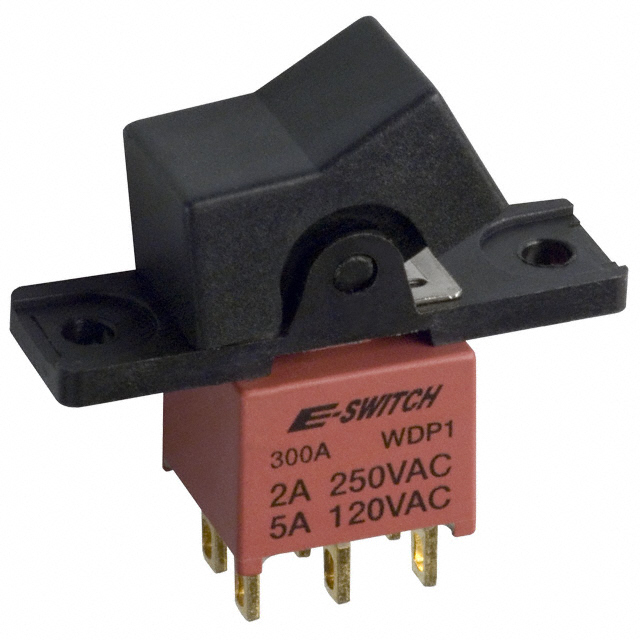

300AWDP1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPDT 5A 120V
| Part | Electrical Life | Switch Function | Voltage Rating - AC | Actuator Marking | Current Rating (Amps) | Features | Actuator Type | Mounting Type | Voltage Rating - DC | Termination Style | Ingress Protection | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Cycles | On-On | 120 V | No Marking | 5 A | Epoxy Sealed Terminals | Concave | Through Hole | 28 V | PC Pin | IP67 - Dust Tight Waterproof | DPDT | 85 °C | -30 ░C | Black | ||
 E-Switch | 30000 Cycles | On-On | 120 V | No Marking | 5 A | Epoxy Sealed Terminals | Concave | Flange Panel Mount | 28 V | Solder Lug | IP67 - Dust Tight Waterproof | DPDT | 85 °C | -30 ░C | Black | 7.2 mm | 13.14 mm |
E-Switch | 30000 Cycles | On-On | 120 V | No Marking | 5 A | Epoxy Sealed Terminals | Concave | Right Angle Through Hole | 28 V | PC Pin | IP67 - Dust Tight Waterproof | DPDT | 85 °C | -30 ░C | Black | ||
 E-Switch | 30000 Cycles | On-On | 20 V | No Marking | 0.4 VA | Epoxy Sealed Terminals | Concave | Through Hole | 20 V | PC Pin | IP67 - Dust Tight Waterproof | DPDT | 85 °C | -30 ░C | Black |
