R7732 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC POWER MANAGEMENT
| Part | Function | Output Type | Duty Cycle (Max) [Max] | Output Phases | Synchronous Rectifier | Topology | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Number of Outputs | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Mounting Type | Package / Case | Frequency - Switching | Clock Sync |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

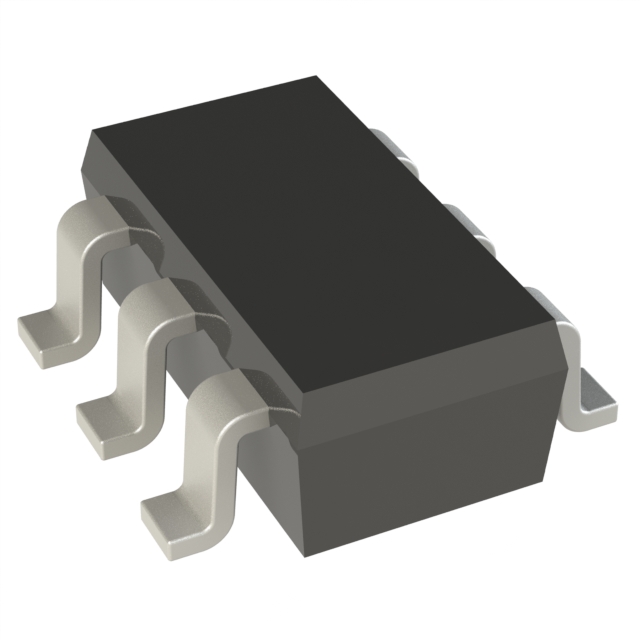

 Richtek USA Inc. | Step-Down Step-Up | PWM | 75 % | 1 | Flyback | Positive | 85 C | -40 ¯C | SOT-23-6 | 1 | 25 V | 12 V | Surface Mount | SOT-23-6 | 65 kHz |
