9GV1224 Series

Catalog

FAN AXIAL 120X25.4MM 24VDC WIRE

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Voltage - Rated	Power (Watts)	Termination	Width [y]	Static Pressure	Static Pressure	Fan Type	Noise	Approval Agency	Bearing Type	Features	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Size / Dimension	Size / Dimension [y]	Weight [custom]	Weight [custom]
Sanyo Denki America Inc. 9GV1224P4G011	Plastic	Plastic	40000 Hrs	0.84 A	24 VDC	20.16 W	4 Wire Leads	25.4 mm	0.9 in H2O	224.2 Pa	Tubeaxial	58 dB(A)	CSA TUV UL	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	171 CFM	4.79 m³/min	120 mm	120 mm	-20 ░C	70 °C	5100 RPM

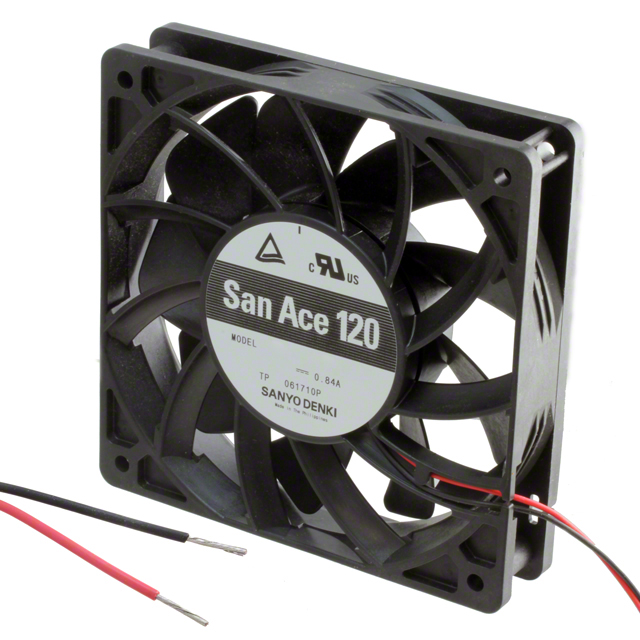

Sanyo Denki America Inc. 9GV1224G402	Plastic	Plastic	40000 Hrs	0.84 A	24 VDC	20.16 W	2 Wire Leads	25.4 mm	0.9 in H2O	224.2 Pa	Tubeaxial	58 dB(A)	CSA TUV UL	Ball		171 CFM	4.79 m³/min		119 mm	-20 ░C	70 °C	5100 RPM	Square	119 mm
Sanyo Denki America Inc. 9GV1224H1021	Plastic	Plastic	40000 Hrs	800 mA	24 VDC	19.2 W	2 Wire Leads	38 mm	0.95 in H2O	237 Pa	Tubeaxial	58 dB(A)	CSA TUV UL	Ball		182.3 CFM	5.1 m³/min	120 mm	120 mm	-20 ░C	70 °C	5200 RPM			0.794 lb	360.15 g
Sanyo Denki America Inc. 9GV1224G4D01	Plastic	Plastic	40000 Hrs	0.84 A	24 VDC	20.16 W	3 Wire Leads	25.4 mm	0.9 in H2O	224.2 Pa	Tubeaxial	58 dB(A)	CSA TUV UL	Ball	Locked Rotor Sensor	171 CFM	4.79 m³/min	120 mm	120 mm	-20 ░C	70 °C	5100 RPM
Sanyo Denki America Inc. 9GV1224P1J011	Plastic	Plastic	40000 Hrs	1.5 A	24 VDC	36 W	4 Wire Leads	38 mm	1.45 in H2O	361.2 Pa	Tubeaxial	64 dB(A)	CSA TUV UL	Ball	PWM Control Speed Sensor (Tach)	224 CFM	6.27 mł/min		119 mm	-20 ░C	70 °C	6400 RPM	Square	119 mm	0.794 lb	360.15 g
Sanyo Denki America Inc. 9GV1224J102	Plastic	Plastic	40000 Hrs	1.5 A	24 VDC	36 W	2 Wire Leads	38 mm	1.45 in H2O	361.2 Pa	Tubeaxial	64 dB(A)	CSA TUV UL	Ball		224 CFM	6.27 mł/min	120 mm	120 mm	-20 ░C	70 °C	6400 RPM			0.794 lb	360.15 g

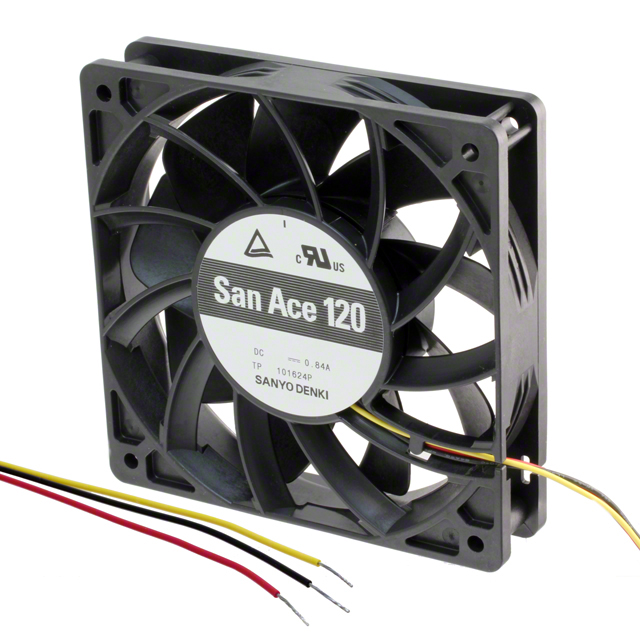

Sanyo Denki America Inc. 9GV1224G401	Plastic	Plastic	40000 Hrs	0.84 A	24 VDC	20.16 W	3 Wire Leads	25.4 mm	0.9 in H2O	224.2 Pa	Tubeaxial	58 dB(A)	CSA TUV UL	Ball	Speed Sensor (Tach)	171 CFM	4.79 m³/min		119 mm	-20 ░C	70 °C	5100 RPM	Square	119 mm
Sanyo Denki America Inc. 9GV1224H1011	Plastic	Plastic	40000 Hrs	800 mA	24 VDC	19.2 W	3 Wire Leads	38 mm	0.95 in H2O	237 Pa	Tubeaxial	58 dB(A)	CSA TUV UL	Ball	Locked Rotor Protection Speed Sensor (Tach)	182.3 CFM	5.1 m³/min	120 mm	120 mm	-20 ░C	70 °C	5200 RPM			0.794 lb	360.15 g
Sanyo Denki America Inc. 9GV1224P1H01	Plastic	Plastic	40000 Hrs	800 mA	24 VDC	19.2 W	4 Wire Leads	38 mm	0.95 in H2O	237 Pa	Tubeaxial	58 dB(A)	CSA TUV UL	Ball	PWM Control Speed Sensor (Tach)	182.3 CFM	5.1 m³/min		119 mm	-20 ░C	70 °C	5200 RPM	Square	119 mm	0.794 lb	360.15 g
Sanyo Denki America Inc. 9GV1224J1D011	Plastic	Plastic	40000 Hrs	1.5 A	24 VDC	36 W	3 Wire Leads	38 mm	1.45 in H2O	361.2 Pa	Tubeaxial	64 dB(A)	CSA TUV UL	Ball	Locked Rotor Sensor	224 CFM	6.27 mł/min	120 mm	120 mm	-20 ░C	70 °C	6400 RPM			0.794 lb	360.15 g
