LDT Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PUSHBUTTON SWITCHES ILUM GRN 1POLE P/B
| Part | Electrical Life | Mechanical Life | Color - Actuator/Cap | Ingress Protection | Actuator Marking | Termination Style | Switch Function | Voltage Rating - DC | Illumination Type, Color | Type | Illumination Voltage (Nominal) | Voltage Rating - AC | Current Rating (Amps) | Mounting Type | Panel Cutout Dimensions [diameter] | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

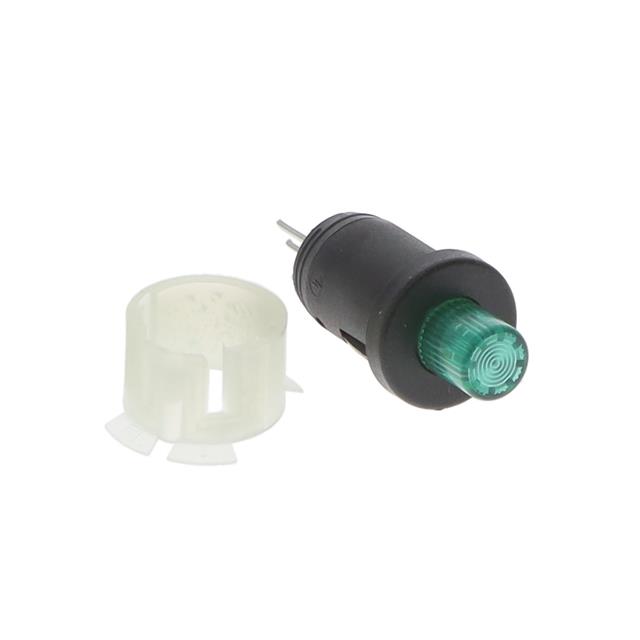

 SCHURTER Inc. | 10000 Cycles | 10000 Steps | Green | IP40 | No Marking | Solder Lug | Off-Mom | 50 VDC | Green LED | Illuminated Standard | 2 VDC | 60 V | 200 mA | Panel Mount Front | 8 mm | SPST-NO | -25 °C | 60 °C | Button Round |

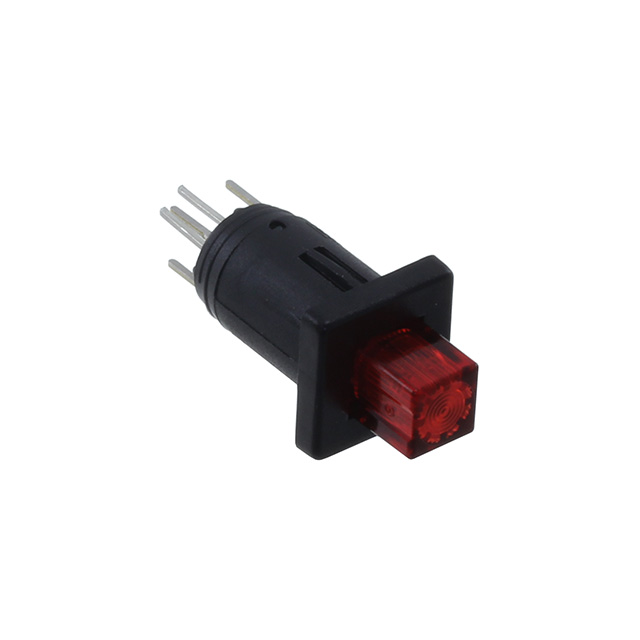

 SCHURTER Inc. | 10000 Cycles | 10000 Steps | Red | IP40 | No Marking | PC Pin | Off-Mom | 50 VDC | LED Red | Illuminated Standard | 1.9 VDC | 60 V | 200 mA | Panel Mount Front | 8 mm | DPST-NO | -25 °C | 60 °C | Button Square |
