280609 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

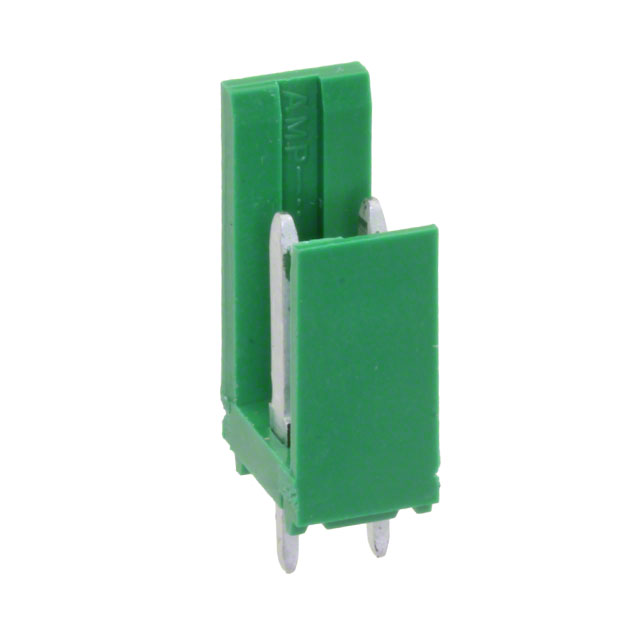

2P MOD 1 SHROUDED HEADER, ST, TIN PLTD
| Part | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Overall Contact Length | Overall Contact Length | Contact Shape | Shrouding | Mounting Type | Number of Rows | Number of Positions Loaded | Termination | Number of Positions | Insulation Material | Material Flammability Rating | Style | Fastening Type | Contact Length - Post | Contact Length - Post | Contact Type | Insulation Color | Connector Type | Insulation Height | Insulation Height | Contact Material | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 10 mm | 0.394 in | Tin | 16.3 mm | 0.642 in | Rectangular | Shrouded - 2 Wall | Through Hole | 1 | All | Solder | 2 | Polycarbonate Glass Filled | UL94 V-0 | Board to Board Cable | Detent Lock | 0.13 in | 3.3 mm | Male Pin | Green | Header | 23.2 mm | 0.913 in | Brass | 0.156 in | 3.96 mm |
