104345 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

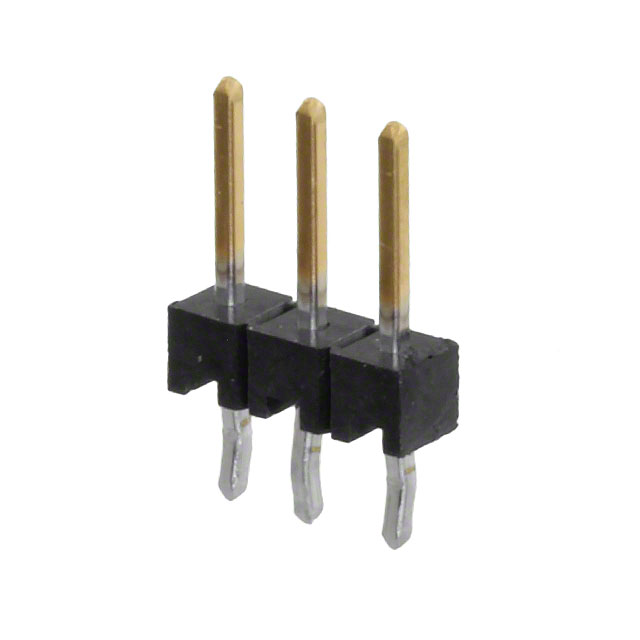

CONN HEADER VERT 3POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Number of Rows	Mounting Type	Current Rating (Amps)	Style	Contact Material	Contact Length - Mating	Contact Length - Mating	Fastening Type	Connector Type	Contact Finish - Mating	Termination	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Shape	Insulation Material	Shrouding	Contact Type	Number of Positions
TE Connectivity AMP Connectors 104345-1	2.54 µm	100 µin	0.1 "	2.54 mm	Black	30 VAC	0.09 in	2.29 mm	105 ░C	-65 ░C	11.18 mm	0.44 in	3.05 mm	0.12 in	1	Through Hole	3 A	Board to Board Cable	Copper Alloy	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Gold	Kinked Pin Solder	All	UL94 V-0	0.38 µm	15 µin	Tin-Lead	Square	Thermoplastic	Unshrouded	Male Pin
TE Connectivity AMP Connectors 104345-4	2.54 µm	100 µin	0.1 "	2.54 mm	Black	30 VAC	0.09 in	2.29 mm	105 ░C	-65 ░C	11.18 mm	0.44 in	3.05 mm	0.12 in	1	Through Hole	3 A	Board to Board Cable	Copper Alloy	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Gold	Kinked Pin Solder	All	UL94 V-0	0.38 µm	15 µin	Tin-Lead	Square	Thermoplastic	Unshrouded	Male Pin	6
TE Connectivity AMP Connectors 1-104345-1	2.54 µm	100 µin	0.1 "	2.54 mm	Black	30 VAC	0.09 in	2.29 mm	105 ░C	-65 ░C	11.18 mm	0.44 in	3.05 mm	0.12 in	1	Through Hole	3 A	Board to Board Cable	Copper Alloy	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Gold	Kinked Pin Solder	All	UL94 V-0	0.38 µm	15 µin	Tin-Lead	Square	Thermoplastic	Unshrouded	Male Pin	13
