29640 Series
Manufacturer: Phoenix Contact
Beta
⌘K

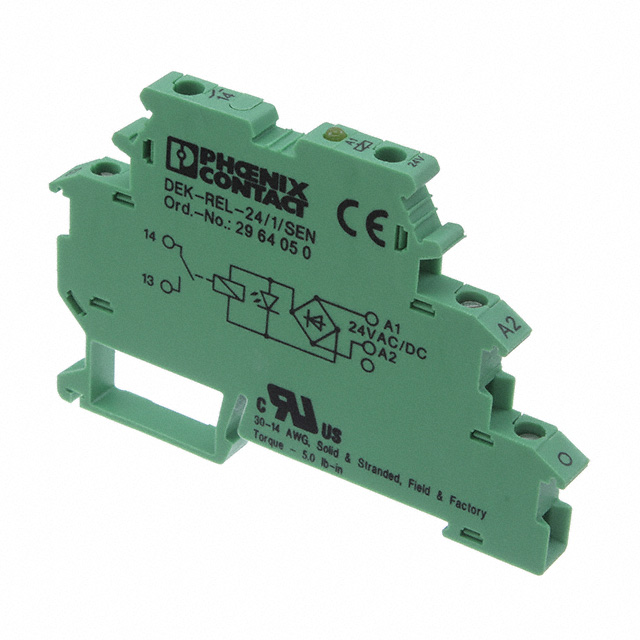

POWER RELAY, AC/DC, 3A, 250V, SPST-NO ROHS COMPLIANT: YES
| Part | Release Time | Coil Voltage | Operate Time | Switching Voltage | Coil Current | Contact Rating (Current) | Contact Form | Mounting Type | Termination Style | Coil Type | Contact Material | Relay Type | Operating Temperature [Min] | Operating Temperature [Max] | Coil Resistance | Load - Max Switching | Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 15 ms | 24 VAC | 5 ms | 250 VAC 250 VDC | 6.5 mA | 3 A | SPST-NO (1 Form A) | DIN Rail | Screw Terminal | Non Latching | Silver Nickel (AgNi) | General Purpose | -20 ░C | 50 °C | ||||
 Phoenix Contact | 11 ms | 12 VDC | 7 ms | 250 VAC 250 VDC | 38 mA | 6 A | SPST-NO (1 Form A) | DIN Rail | Screw Terminal | Non Latching | Silver Nickel (AgNi) | General Purpose | -20 ░C | 40 °C | 315.79 Ohms | 140 W 1500 VA | Diode Lighted Indicator | cULus EAC UL |
 Phoenix Contact | 15 ms | 24 VAC | 5 ms | 250 VAC 250 VDC | 6.5 mA | 3 A | SPST-NO (1 Form A) | DIN Rail | Screw Terminal | Non Latching | Silver Nickel (AgNi) | General Purpose | -20 ░C | 50 °C |
