663-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

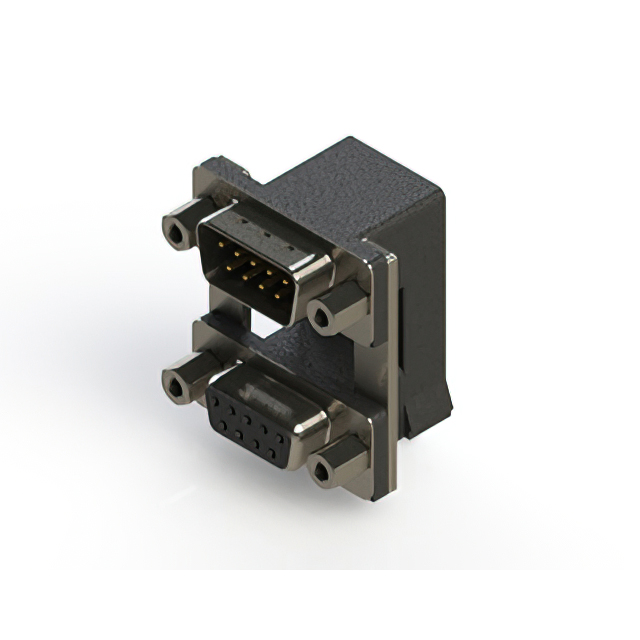

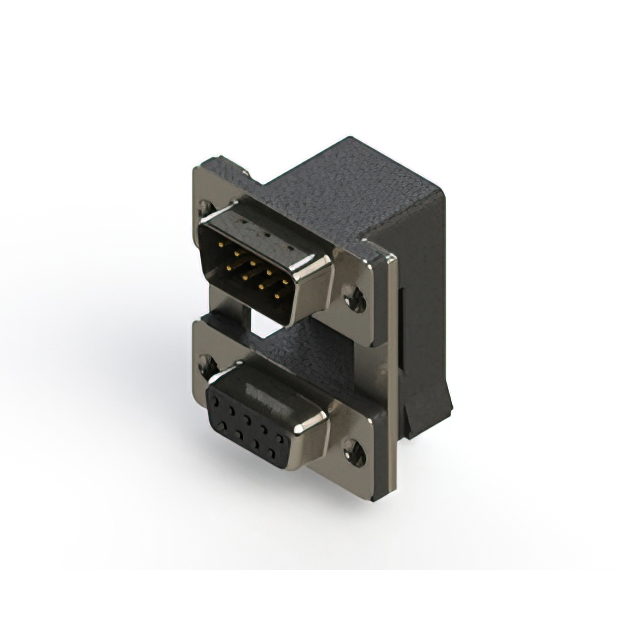

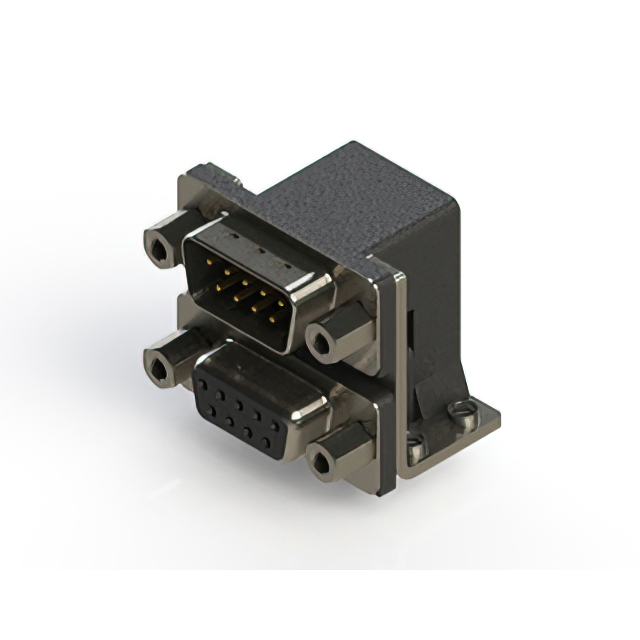

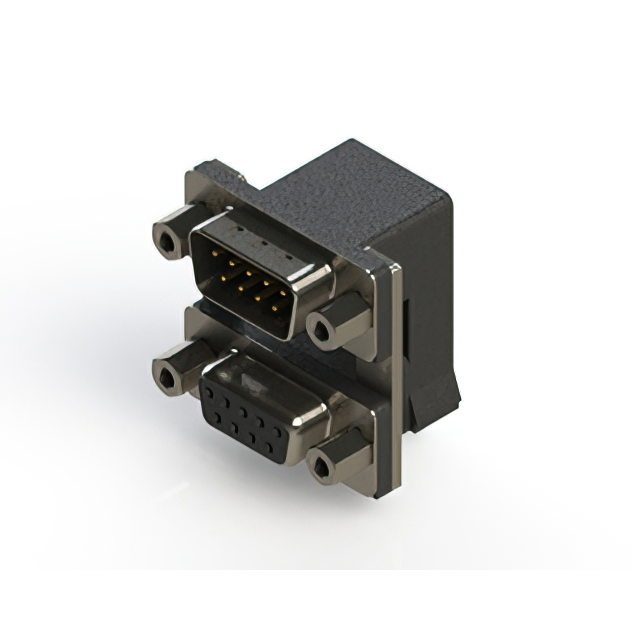

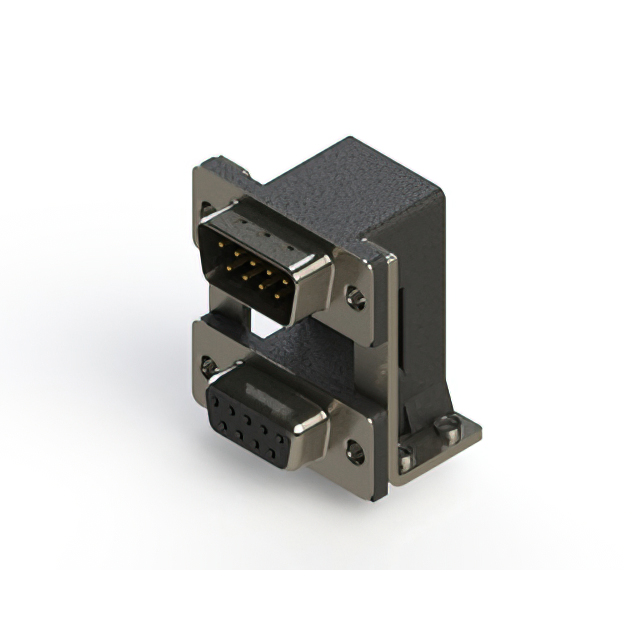

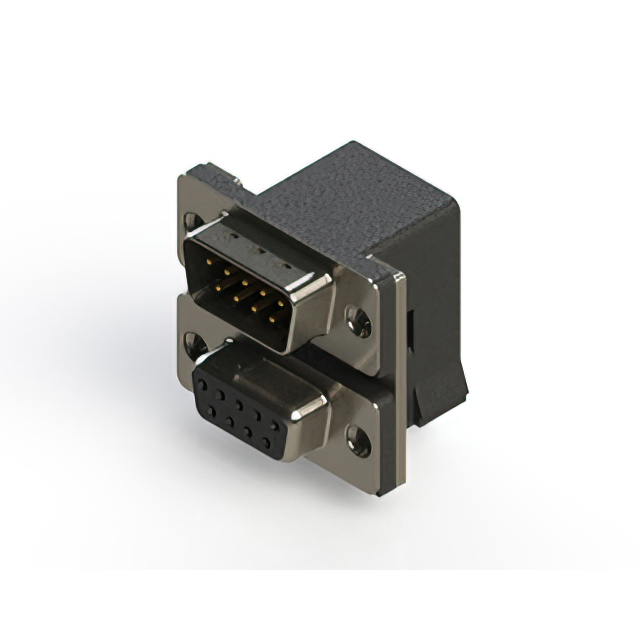

663 SERIES RIGHT ANGLE DUAL D-SU
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Number of Positions | Connector Type | Shell Material, Finish | Current Rating (Amps) | Mounting Type | Contact Type | Number of Rows [custom] | Flange Feature | Features | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Connector Style | Termination | Contact Finish | Backset Spacing | Backset Spacing | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | 4-40 Mating Side Female Screwlock | Grounding Indents Shielded | 30 Áin | 0.76 Ám | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | ||
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | Housing/Shell (M3) | Grounding Indents Shielded | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | Flash | |||
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | Housing/Shell (Unthreaded) | Grounding Indents Shielded | 15 µin | 0.38 µm | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | ||
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | 4-40 Mating Side Female Screwlock | Grounding Indents Shielded | 30 Áin | 0.76 Ám | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | ||
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | 4-40 Mating Side Female Screwlock | Grounding Indents Shielded | 15 µin | 0.38 µm | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | ||
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | 4-40 Mating Side Female Screwlock | Grounding Indents Shielded | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | Flash | |||
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | Housing/Shell | Grounding Indents Shielded | 15 µin | 0.38 µm | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | 4-40 | |
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | 4-40 Mating Side Female Screwlock | Grounding Indents Shielded | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | Flash | |||
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | Housing/Shell (Unthreaded) | Grounding Indents Shielded | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | Flash | |||
 EDAC Inc. | Brass Phosphor Bronze | Black | Polyester Thermoplastic | -55 C | 85 °C | 1 | 9 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | Right Angle Through Hole | Signal | 2 | Housing/Shell (Unthreaded) | Grounding Indents Shielded | UL94 V-0 | D-Sub - Stacked | Solder | Gold | 8.08 mm | 0.318 " | Flash |
