FDA2-25489 Series
Manufacturer: Qualtek
Beta
⌘K

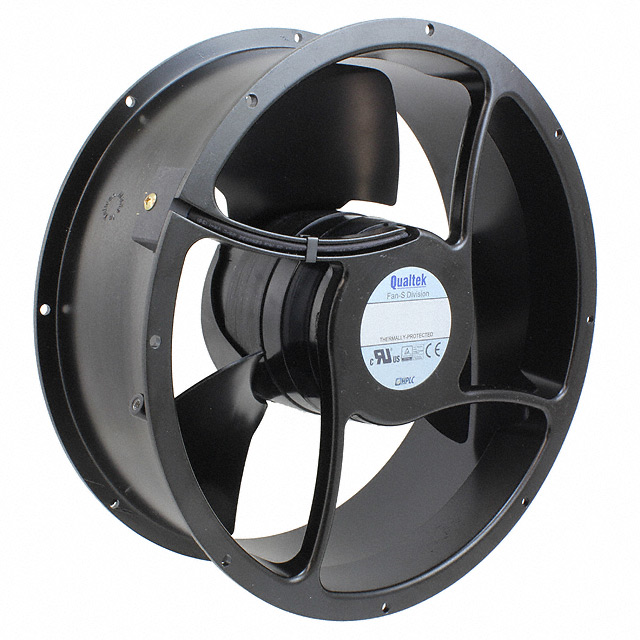

FAN AXIAL 254X89MM 230VAC TERM
| Part | Material - Frame | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Size / Dimension | Size / Dimension [diameter] | Voltage - Rated | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Noise | RPM | Static Pressure | Static Pressure | Air Flow | Air Flow | Weight | Weight | Ingress Protection | Fan Type | Bearing Type | Power (Watts) | Approval Agency | Width [y] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Aluminum | Steel | 100000 Hrs | 140 mA | Round | 10 in | 230 VAC | 2 | -20 ░C | 70 °C | 52 dB | 1650 RPM | 0.307 in H2O | 76.5 Pa | 12.32 m³/min | 440 CFM | 2.7 kg | 6 lbs | IP54 - Dust Protected Water Resistant | Tubeaxial | Ball | 32 W | CE cURus TUV | 89 mm | |
Qualtek | Aluminum | Steel | 50000 Hrs | 0.28 A | Round | 10 in | 115 VAC | -20 ░C | 70 °C | 52 dB | 1650 RPM | 0.307 in H2O | 76.5 Pa | 12.32 m³/min | 440 CFM | 2.7 kg | 6 lbs | Tubeaxial | Ball | 29 W | CE cURus TUV | 89 mm | 2 Wire Leads | ||
 Qualtek | Round | 10 in | 115 VAC | 2 | -20 ░C | 70 °C | 52 dB | 1650 RPM | 0.307 in H2O | 76.5 Pa | 12.32 m³/min | 440 CFM | 2.7 kg | 6 lbs | Tubeaxial | Ball | 29 W | CE cURus TUV | 89 mm |
