22PPNONC Series
Manufacturer: c3controls
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

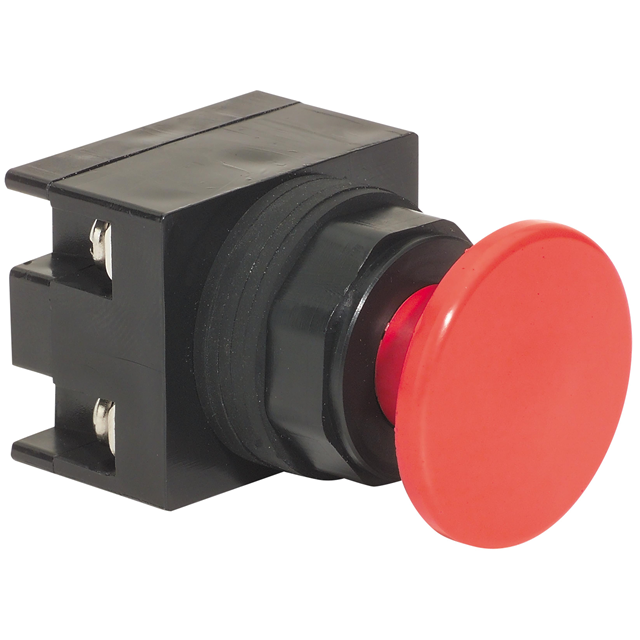

22MM PUSH PULL MSHRM CAP NONC
| Part | Mechanical Life (Cycles) | Circuit | Actuator Type | Panel Cutout Diameter | Panel Cutout Shape | Mounting Type | Ingress Protection IP Rating | Ingress Protection Description | Actuator Marking | Operating Temperature (Min) | Operating Temperature (Max) | Type | Voltage Rating - DC | Current Rating | Voltage Rating - AC | Termination Style | Color - Actuator/Cap | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 c3controls | 1000000 Cycles | DPST-NO/NC | Button Mushroom Round | 25.5 mm | Circular | Panel Mount Rear | IP65 | Dust Tight Water Resistant | No Marking | -40 °C | 55 °C | Standard | 28 V | 5 A 10 A | 72 V | Screw Terminal | Red | Off-On On-Off |
