C14610A016 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

INSERT MALE 16POS+1GND SCREW

Part	Housing Material	Color	Material Flammability Rating	Contact Material [custom]	Contact Material [custom]	Termination Style	Number of Positions	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current Rating (Amps)	Size	Contact Type	Voltage Rating	Contact Material	Contact Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]

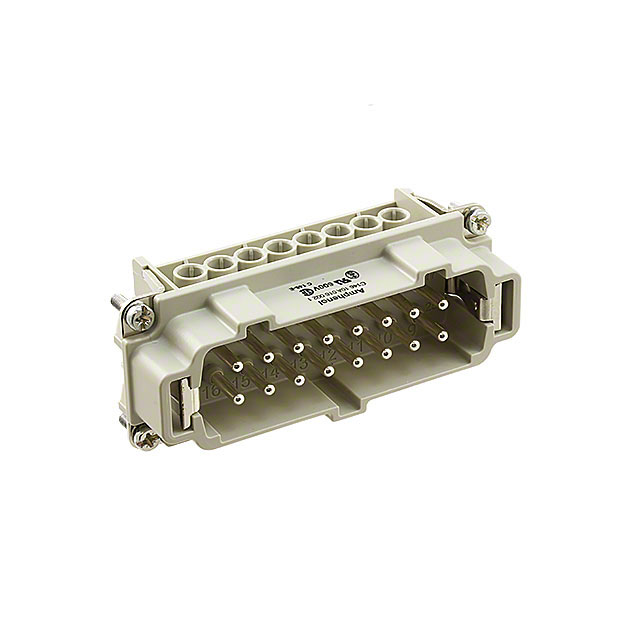

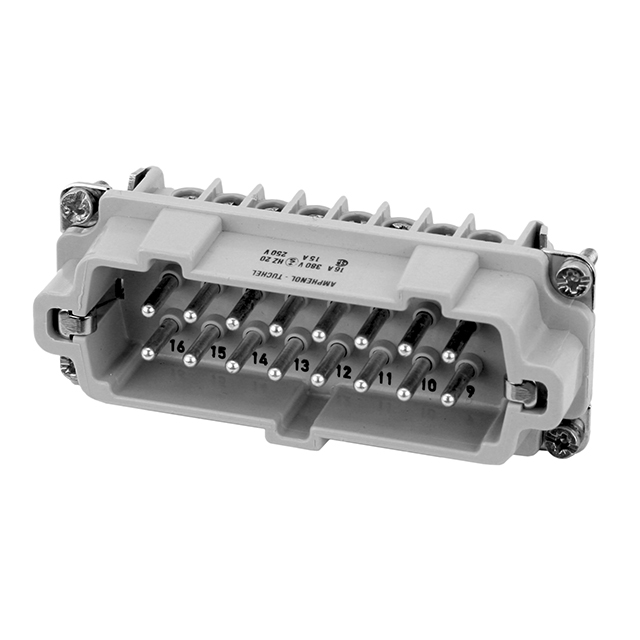

Amphenol Tuchel Industrial C14610A0168101	Polyamide (PA) Nylon	Gray	UL94 V-0	FE/KO	Iron-Constantan	Screw	16+Ground	Male	-40 C	100 °C	Insert
Amphenol Tuchel Industrial C14610A0160001	Glass Filled Polycarbonate (PC)	Gray	UL94 V-0			Crimp	16+Ground	Male	-40 C	125 °C	Insert without Contacts	10 A	E16	C 16-3	600 V
Amphenol Tuchel Industrial C14610A0161023	Glass Filled Nylon Polyamide (PA)	Black	UL94 V-0			Screw		Male	-40 C	125 °C	Insert	10 A	E24		600 V	Brass	Silver	16	2	Ground
Amphenol Tuchel Industrial C14610A0160023	Glass Filled Nylon Polyamide (PA)	Black	UL94 V-0			Screw		Male	-40 C	125 °C	Insert	10 A	E24		600 V	Brass	Silver	16	2	Ground
Amphenol Tuchel Industrial C14610A0161021	Glass Filled Polycarbonate (PC)	Gray	UL94 V-0			Screw	16+Ground	Male	-40 C	125 °C	Insert	10 A	E16		600 V	Brass	Silver
Amphenol Tuchel Industrial C14610A0161024	Polybutylene Terephthalate (PBT)		UL94 V-0			Screw	16+Ground	Male	-40 C	100 °C	Insert	14 A	A16		250 V	Brass	Silver
Amphenol Tuchel Industrial C14610A0160024	Polybutylene Terephthalate (PBT)		UL94 V-0			Screw	16+Ground	Male	-40 C	100 °C	Insert	14 A	A16		250 V	Brass	Silver
Amphenol Tuchel Industrial C14610A0160021	Glass Filled Polycarbonate (PC)	Gray	UL94 V-0			Screw	16+Ground	Male	-40 C	125 °C	Insert	10 A	E16		600 V	Brass	Silver
Amphenol Tuchel Industrial C14610A0160044	Polybutylene Terephthalate (PBT)		UL94 V-0			Screw	16+Ground	Male	-40 C	100 °C	Insert	14 A	A10		250 V	Brass	Silver
