80161 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

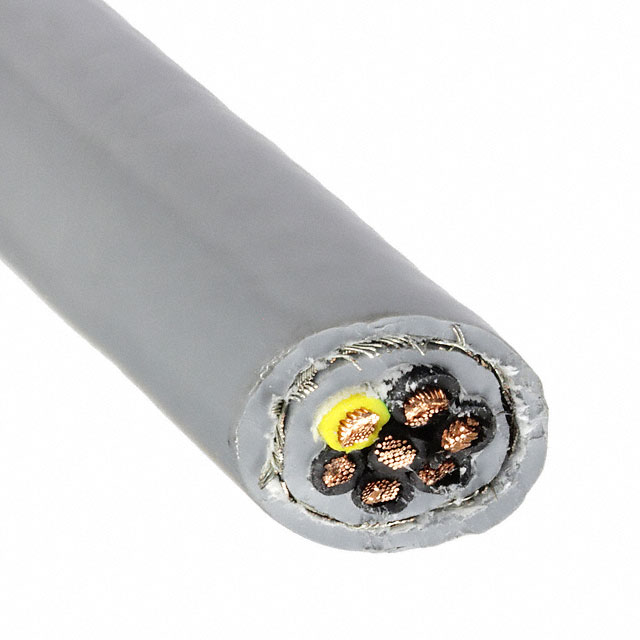

CABLE 7CON 12AWG SLATE SHLD 100'
| Part | Shield Material | Length [x] | Length [x] | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Coverage | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Jacket (Insulation) Material | Conductor Material | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 30.5 m | 100 ft | 12 AWG | Polyphenylene Ether (PPE) | 0.507 " | 12.88 mm | 34 AWG | 168 | 7 | Multi-Conductor | 0.0319 in | 0.81 mm | 85 % | 600 V | 90 °C | -50 °C | Braid | Polyurethane (PU) | Copper Tinned | Slate |
