726-088 Series
Manufacturer: EDAC Inc.
Beta
⌘K

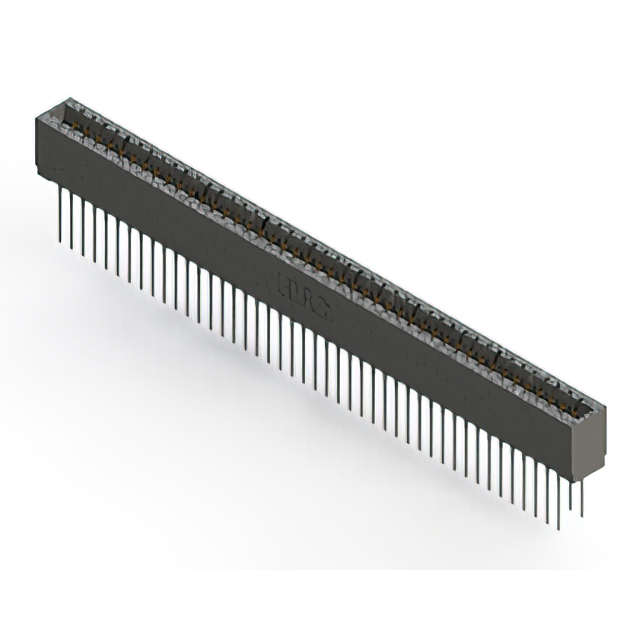

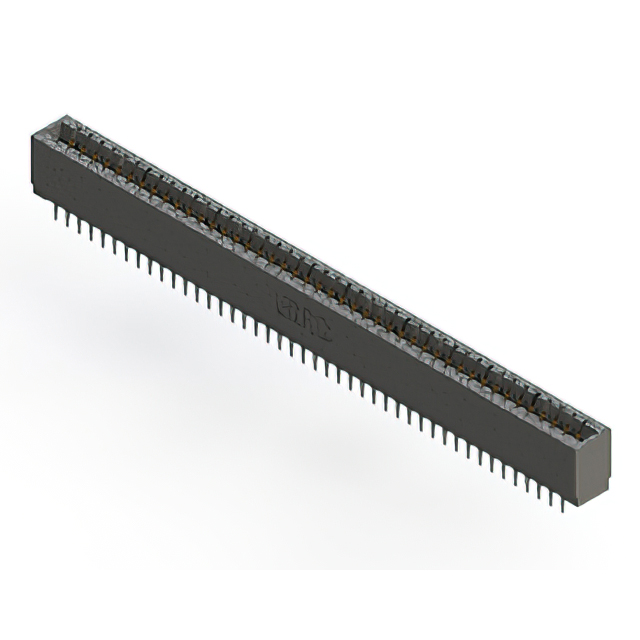

CONN EDGE DUAL FMALE 88POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Number of Rows [custom] | Contact Finish | Color | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Read Out | Gender | Termination | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Type | Card Type | Number of Positions/Bay/Row | Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | Gold | Black | 30 Áin | 0.76 Ám | 3.18 mm | 0.125 in | Dual | Female | Press-Fit | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 88 | Cantilever | Non Specified - Dual Edge | 44 | Copper Alloy | Through Hole |
 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | Gold | Black | 30 Áin | 0.76 Ám | 3.18 mm | 0.125 in | Dual | Female | Press-Fit Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 88 | Cantilever | Non Specified - Dual Edge | 44 | Copper Alloy | Through Hole |
 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | Gold | Black | 30 Áin | 0.76 Ám | 3.18 mm | 0.125 in | Dual | Female | Press-Fit Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 88 | Cantilever | Non Specified - Dual Edge | 44 | Copper Alloy | Through Hole |
