9TGA24 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

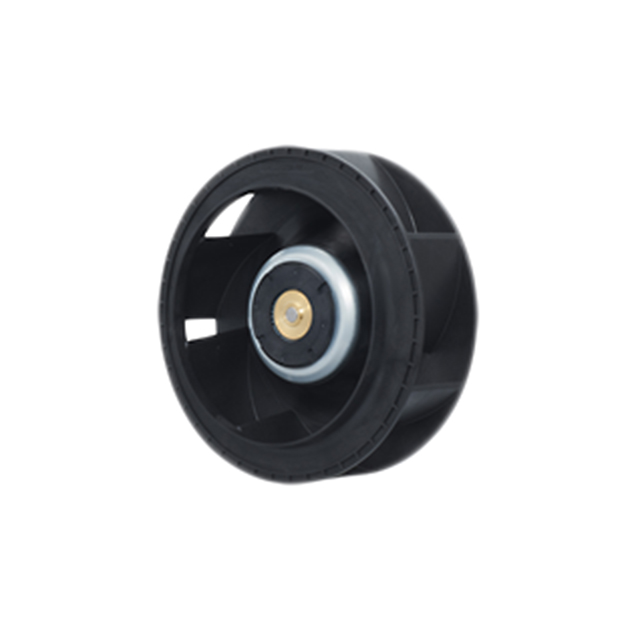

FAN IMP MTRZD 175X69MM 24VDC
| Part | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Air Flow | Air Flow | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | RPM | Noise | Static Pressure | Static Pressure | Bearing Type | Weight | Weight | Approval Agency | Termination | Voltage - Rated | Width [y] | Fan Type | Power (Watts) | Features | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Aluminum | 4.8 A | Varies Based on Temperature | 541 CFM | 15.15 m³/min | 36 VDC | 16 VDC | Plastic | 4950 RPM | 77 dB | 3.33 in H2O | 829.5 Pa | Ball | 1.6 lbs | 725.7 g | cURus TUV | 4 Wire Leads | 24 VDC | 69 mm | Motorized Impellers | 115 W | PWM Control Speed Sensor (Tach) | -20 ░C | 70 °C | Round | 175 mm |
