165566 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

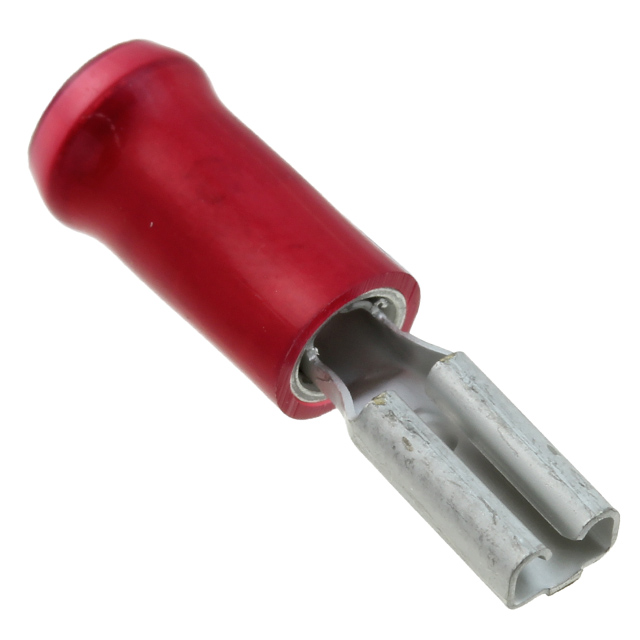

110 PIDG FASTON REC
| Part | Contact Material | Contact Finish | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Gender | Tab Width | Tab Width | Insulation | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Terminal Type | Tab Length | Tab Length | Termination | Color | Length - Overall [x] | Length - Overall [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | Tin | 0.032 in | 0.81 mm | 22 AWG | 16 AWG | Female | 2.79 mm | 0.11 " | Non-Mating End Insulated | 3.56 mm | 0.14 in | Standard | 0.248 in | 6.3 mm | Crimp | Red | 0.78 in | 19.81 mm | Free Hanging (In-Line) |
