H10B Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN BASE BOTTOM SZH10B
| Part | Housing Material | Features | Lock Location | Housing Finish | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Style | Connector Type | Ingress Protection | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Size | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

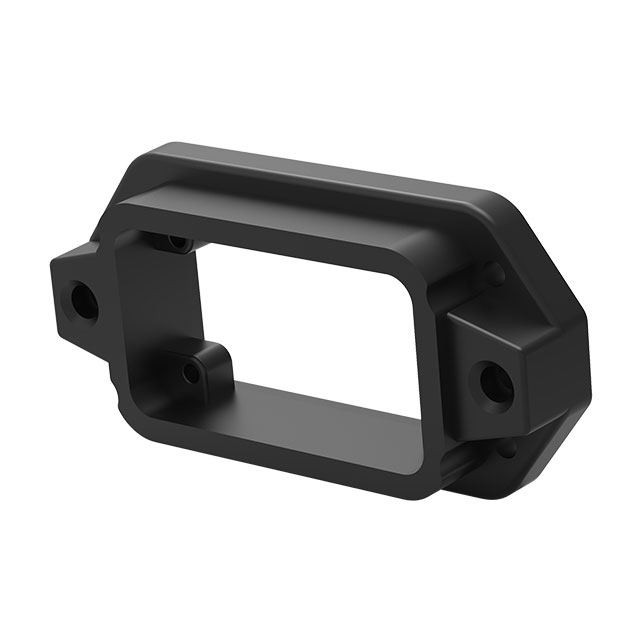

 TE Connectivity Aerospace, Defense and Marine | Aluminum Alloy Die Cast | Corrosion Resistant EMC Resistant | Screw Locks on Hood | Powder Coated | 0.862 " | 4.331 in | 2.205 in | 56 mm | 21.9 mm | 110 mm | Bottom Entry | Base - Panel Mount | IP68 - Dust Tight Waterproof | Black | 125 °C | -40 °C | H10B | |

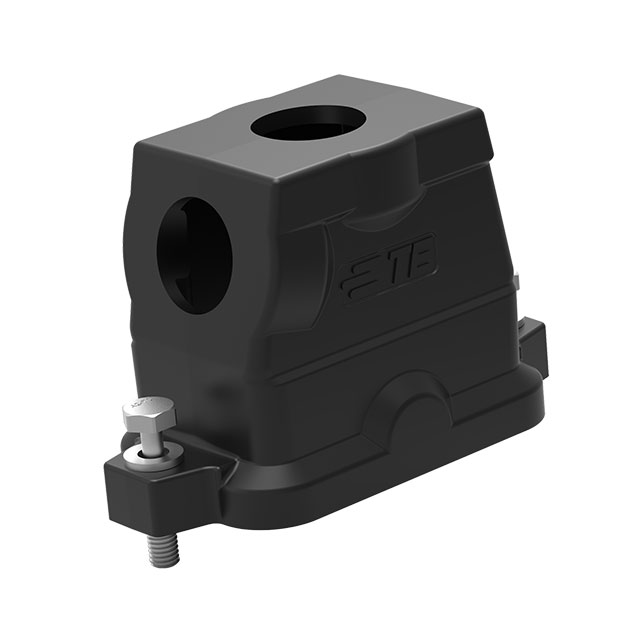

 TE Connectivity Aerospace, Defense and Marine | Aluminum Alloy Die Cast | Corrosion Resistant EMC Resistant | Screw Locks on Hood | Powder Coated | 2.756 in | 4.331 in | 2.094 " | 53.2 mm | 70 mm | 110 mm | Side and Top Entry | Hood | IP68 - Dust Tight Waterproof | Black | 125 °C | -40 °C | H10B | M25 |
