301A034 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

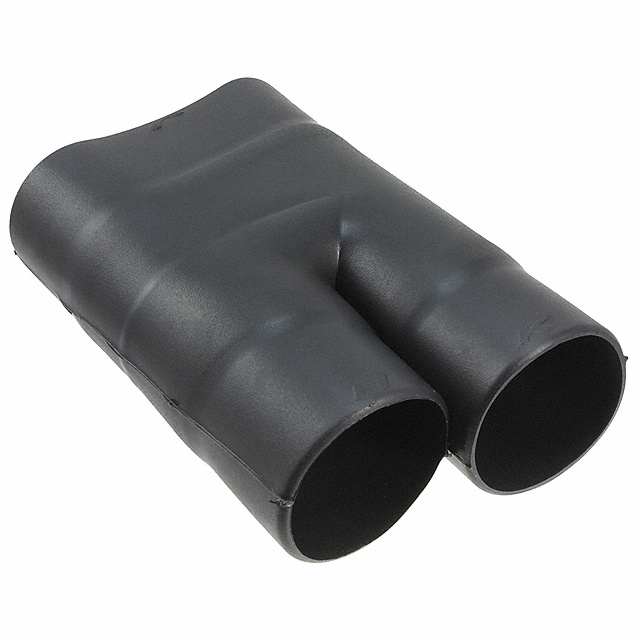

HEATSHRNK BOOT BRKOUT T SZ34 BLK

Part	Type	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Recovered Length [x]	Small Recovered Length	Material	Shell Size - Insert	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Color	Features	Large Recovered Length [x]	Large Recovered Length [x]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Total Length Recovered [x]	Total Length Recovered [x]
TE Connectivity Aerospace, Defense and Marine 301A034-4/86-0	Boot Transition - Breakout 2:1 (T)	1.06 in	26.92 mm	13.49 mm	0.531 "	2.362 in	59.99 mm	Polyolefin (PO) Flexible Irradiated	34	13.49 mm	0.531 "	Black	Adhesive Coating Flame Retardant Fluid Resistant Heat Resistant Strain Resistant	2.37 in	60.2 mm	26.92 mm	1.06 in
TE Connectivity Aerospace, Defense and Marine 301A034-25-0	Boot Transition - Breakout 2:1 (T)	1.06 in	26.92 mm	13.49 mm	0.531 "	2.362 in	59.99 mm	Elastomer Semi-Rigid Irradiated	34	13.49 mm	0.531 "	Black	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Strain Resistant	2.37 in	60.2 mm	26.92 mm	1.06 in
TE Connectivity Aerospace, Defense and Marine 301A034-25/86-0	Boot Transition - Breakout 2:1 (T)	1.06 in	26.92 mm	13.49 mm	0.531 "	2.362 in	59.99 mm	Elastomer Semi-Rigid Irradiated	34	13.49 mm	0.531 "	Black	Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Strain Resistant	2.37 in	60.2 mm	26.92 mm	1.06 in
TE Connectivity Aerospace, Defense and Marine 301A034-25/42-0	Boot Transition - Breakout 2:1 (T)	1.06 in	26.92 mm	13.49 mm	0.531 "	2.362 in	59.99 mm	Elastomer Semi-Rigid Irradiated	34	13.49 mm	0.531 "	Black	Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Strain Resistant	2.37 in	60.2 mm	26.92 mm	1.06 in
TE Connectivity Aerospace, Defense and Marine 301A034-4-0-CS5364	Boot Transition - Breakout 2:1 (T)	1.06 in	26.92 mm	13.49 mm	0.531 "	2.362 in	59.99 mm	Polyolefin (PO) Flexible Irradiated	34	13.49 mm	0.531 "	Black	Flame Retardant Fluid Resistant Heat Resistant	2.37 in	60.2 mm	26.92 mm	1.06 in
TE Connectivity Aerospace, Defense and Marine 301A034-25-G02-0	Boot Transition - Breakout 2:1 (T)	1.26 in	32 mm	13.49 mm	0.531 "	2.362 in	59.99 mm	Elastomer Semi-Rigid Irradiated	34	13.49 mm	0.531 "	Black	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Strain Resistant			32 mm	1.26 in	4.724 in	120 mm
